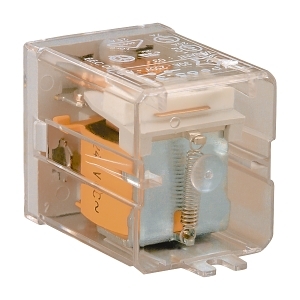

Finder 65 Series Power Relay Flange Mount 20A 240V AC Coil 1NO 1NC Contacts
The Finder 65 Series Power Relay is designed for reliable switching in various applications, featuring a 20A capacity and a compact flange mount design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Finder 65 Series Power Relay Flange Mount 20A 240V AC Coil 1NO 1NC Contacts
Brand: NHP
SKU: 6531240VAC
Alternatively Known As: Power Relay, Flange Mount Relay, 20A Relay
Technical Specifications
- Nominal Current: 20 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage: 400 V
- Rated Switching Power at AC-1: 5000 VA
- Rated Switching Power at AC-15 (230 V): 1000 VA
- Electrical Life: 80,000 cycles
- Mechanical Life: 10,000,000 cycles
- Operating Temperature: -40 to 75 °C
- Material of Contact: Silver cadmium-oxide
- Dimensions (H x L x W): 37mm x 57mm x 32mm
- Weight: 0.5 kg
Key Features
- 20A nominal current with 1 normally open and 1 normally closed contact.
- Suitable for flange mounting.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching of electrical loads
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 65 Series Power Relay Flange Mount 20A 240V AC Coil is available now for immediate purchase. Ideal for industrial and commercial applications.
