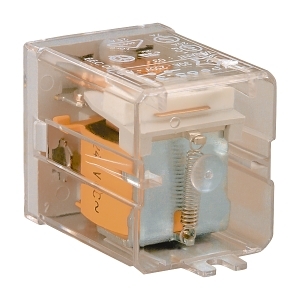

Finder 65 Series Power Relay Flange Mount 20A 24V DC Coil 1NO 1NC Contacts
The Finder 65 Series Power Relay is designed for reliable switching in various applications, featuring a 20A capacity and a 24V DC coil with both normally open and normally closed contacts.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Finder 65 Series Power Relay Flange Mount 20A 24V DC Coil 1NO 1NC Contacts
Brand: NHP
SKU: 653124VDC
Alternatively Known As: Power Relay, Flange Mount Relay, 20A Relay
Technical Specifications
- Nominal Current: 20 A
- Nominal Voltage AC: 250 V
- Max Rated Operation Voltage (UE AC): 400 V
- Rated Switching Power at AC-1: 5000 VA
- Rated Switching Power at AC-15 (230 V): 1000 VA
- Breaking Capacity at DC-1 (30 V): 20 A
- Control Supply Voltage (US) at DC: 24 V
- Electrical Life at Un in Service: 80000 cycles
- Mechanical Life: 30000000 cycles
- Operating Temperature: -40 to 75 °C
- Dimensions (H x L x W): 37mm x 57mm x 32mm
- Weight: 0.2 kg
Key Features
- 20A nominal current with 24V DC coil.
- 1 Normally Open (NO) and 1 Normally Closed (NC) contact configuration.
- Suitable for flange mounting.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
- General: Any application requiring reliable switching of electrical loads
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Long mechanical life reduces waste and promotes sustainability.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Finder 65 Series Power Relay Flange Mount 20A 24V DC Coil 1NO 1NC Contacts is available now for immediate purchase. Ideal for industrial and commercial applications.
Non-Returnable & Non-Cancellable
