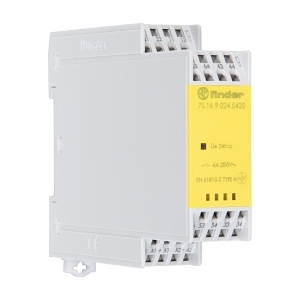

Finder 7S Series Safety Relay Forcibly Guided 6A 24V DC Coil 4 N.O. 2 N.C. Contacts
The Finder 7S Series Safety Relay features a 6A 24V DC coil with 4 normally open and 2 normally closed contacts, designed for safety applications in industrial and commercial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Finder 7S Series Safety Relay Forcibly Guided 6A 24V DC Coil 4 N.O. 2 N.C. Contacts
Brand: NHP
SKU: 7S1690245420
Alternatively Known As: Safety Modular Relay, Switching Relay
Technical Specifications
- Nominal Current: 6 A
- Nominal Voltage AC: 250 V
- Rated Switching Power at AC 1: 1500 VA
- Rated Switching Power at AC 15 230 V: 700 VA
- Breaking Capacity at DC 1 30 V: 6 A
- Breaking Capacity at DC 1 110 V: 0.6 A
- Control Supply Voltage US at DC: 24 V
- Rated Control Supply Voltage US at DC: 16.8-30 V
- Electrical Life at Un in Service: 100000 cycles
- Mechanical Life Service Cycles: 10000000 cycles
- Degree of Protection: IP20
- Operating Temperature: -40-70 °C
- Dimensions (H x L x W): 78.8mm x 96mm x 22.5mm
- Weight: 0.5 kg
Key Features
- Forcibly guided contacts for enhanced safety.
- Spring clamp connection for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Safety systems in machinery and automation
- Commercial: Control systems requiring safety relays
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Designed for long operational life, reducing waste and resource consumption.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Finder 7S Series Safety Relay is available now for immediate purchase, ideal for safety applications in industrial and commercial environments.
