BRAND: CERTECH

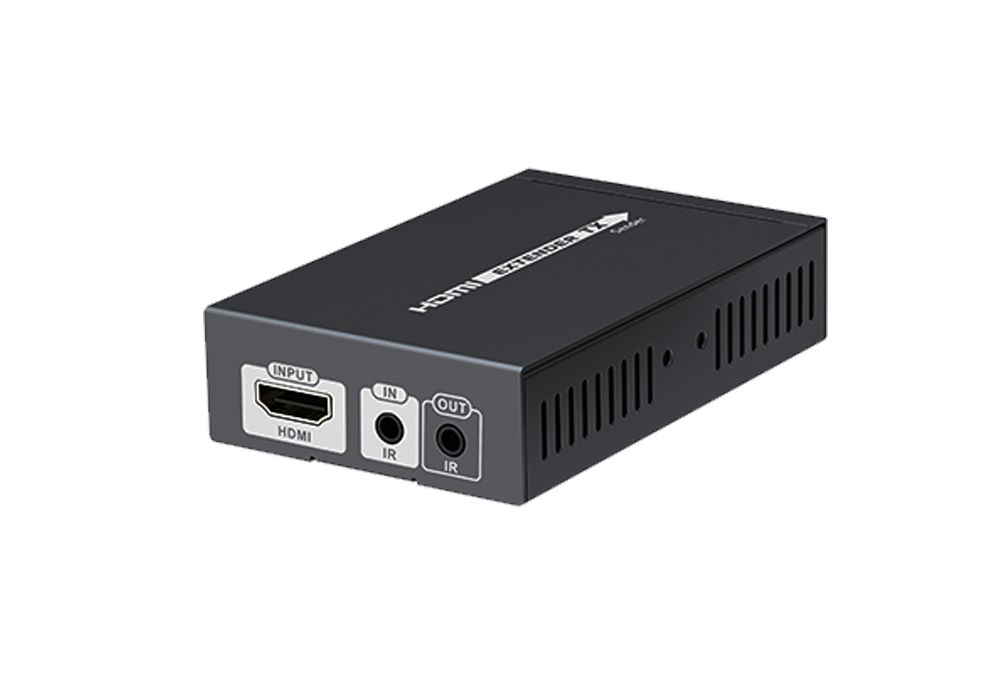

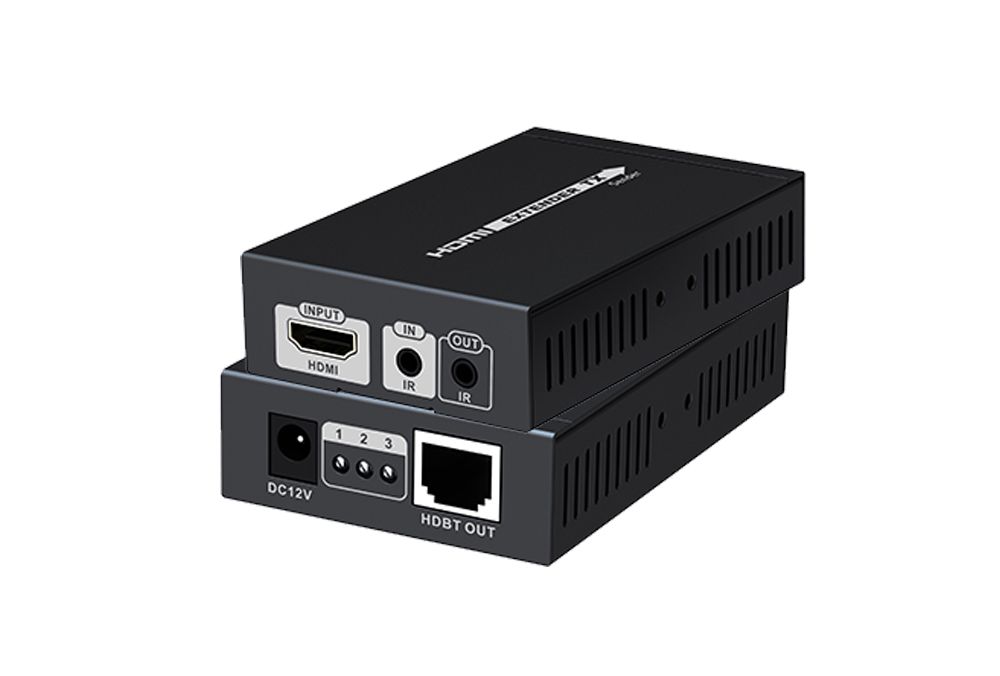

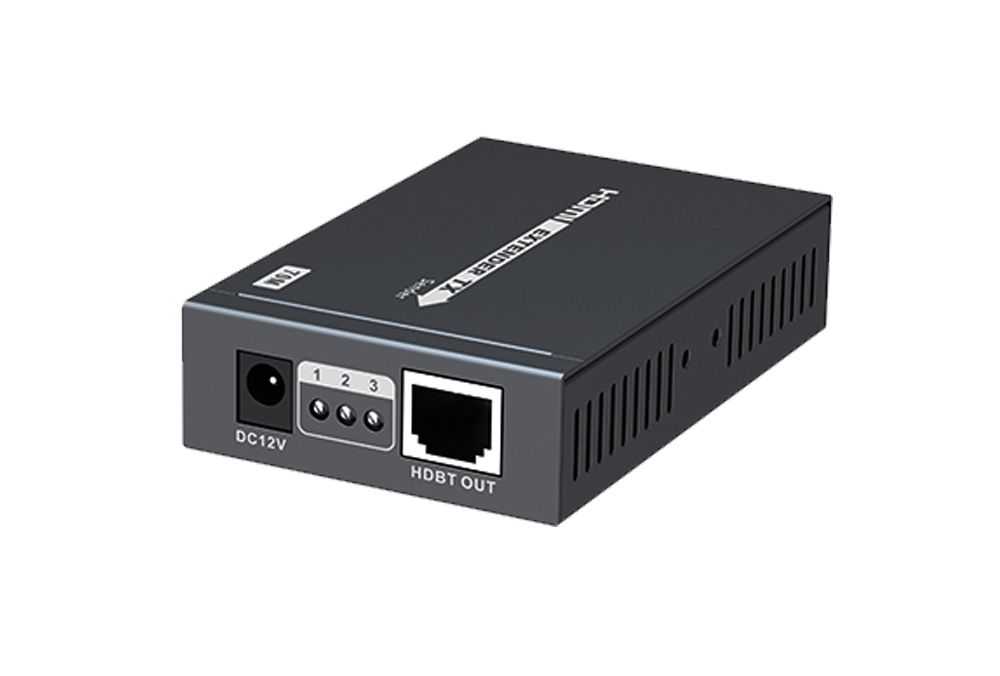

HDMI HDBaseT Extender over Cat6 to 70 Metres, 1080p


$321.90 List price: $418.40
+

Product Name/Title: HDMI HDBaseT Extender over Cat6 to 70 Metres, 1080p

Brand: Certech

SKU: HDBTEXT70

Alternatively Known As: HDMI Extender, HDBaseT Extender, HDMI over Cat6 Extender

Technical Specifications
  • HDMI Signal: 4Kx2K, compatible with HDCP, supports CEC & 24 bits deep color.
  • Supported Resolutions: 480i/480P/576i/576P/720P/1080i/1080P/3D/4Kx2K.
  • Audio: LPCM, DTS-HD, Dolby True HD.
  • Network Cable: Cat6/6a.
  • Transmission Length: Up to 70m for 1080p@60Hz.
  • Power supply: DC12V/1A *2pcs.
  • Power consumption: TX < 3.5W, RX < 6W.
  • Dimensions (H x L x W): 23mm x 98.5mm x 66.5mm
  • Weight: 0.2 kg
Key Features
  • Transmits uncompressed HDMI signal over CAT6/6a cable.
  • Supports full HD 1080p@60Hz, 3D, 4Kx2K@60Hz.
  • Bidirectional IR pass-back function.
  • Supports HDCP, CEC, and 24-bit deep color.
Professional Installation Requirements
  • Professional installation is recommended for optimal performance.
Applications
  • Residential: Home theater systems
  • Commercial: Conference rooms, classrooms, digital signage
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Reduces the need for multiple cables, minimizing electronic waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Certech HDMI HDBaseT Extender over Cat6 to 70 Metres, 1080p is available now for immediate purchase. Ideal for residential and commercial applications.

Specification Sheet (hdbtext70_u.pdf, 250 Kb) [Download]
