HIBTRI2

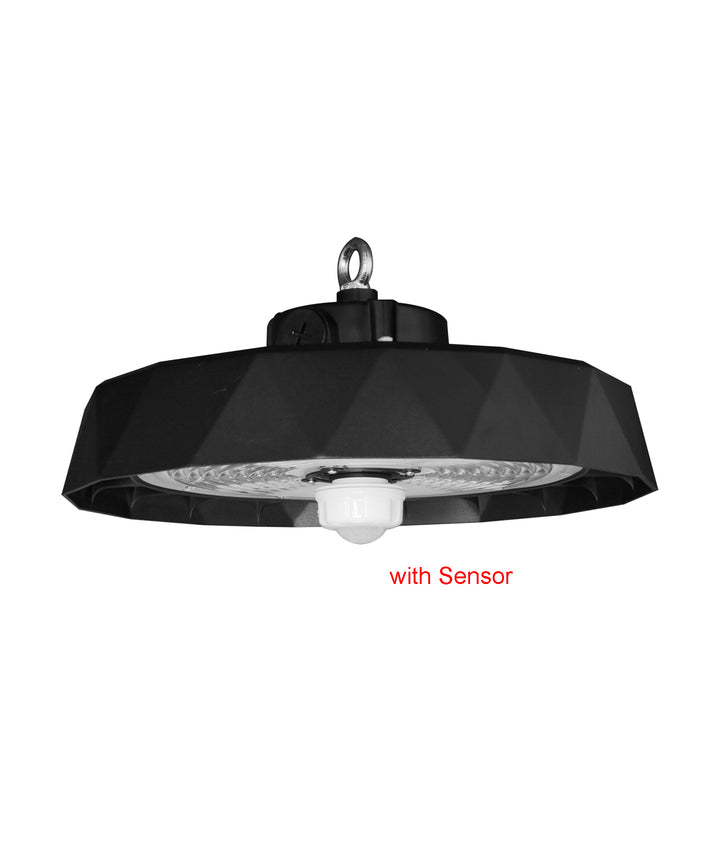

HI BAY LED 100/150/200W RND TRI 90D IP65 17500/25500/32000Lm Sensor Attachable


$204.10 List price: $266.00
+

Product Name/Title: HI BAY LED 100/150/200W RND TRI 90D IP65 17500/25500/32000Lm Sensor Attachable

Brand: CLA Lighting

SKU: HIBTRI2

Alternatively Known As: High Bay LED Light, Industrial LED High Bay, LED High Bay Fixture

Technical Specifications
  • Power factor: 0.95
  • Wattage: <0.5W standby
  • Installation height: recommended up to 12m
  • Detection angle: 120 degrees

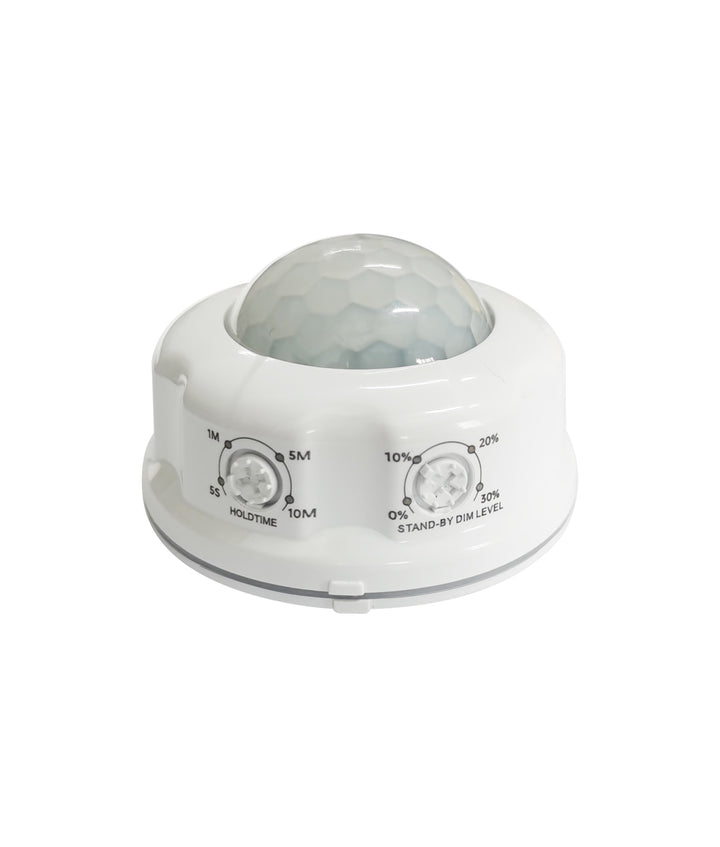

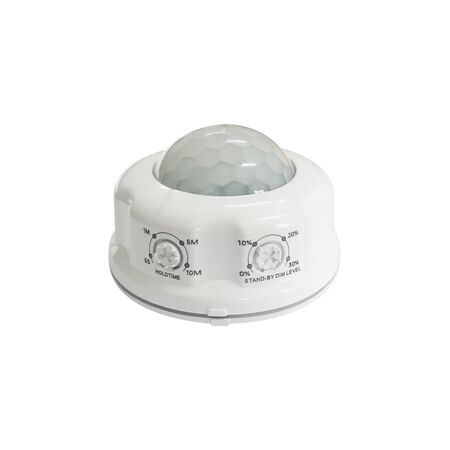

  • Time delay: 5s / 1min / 5min / 10min
  • Ambient temperature: -20 to 60 degrees
  • UV resistant: Yes

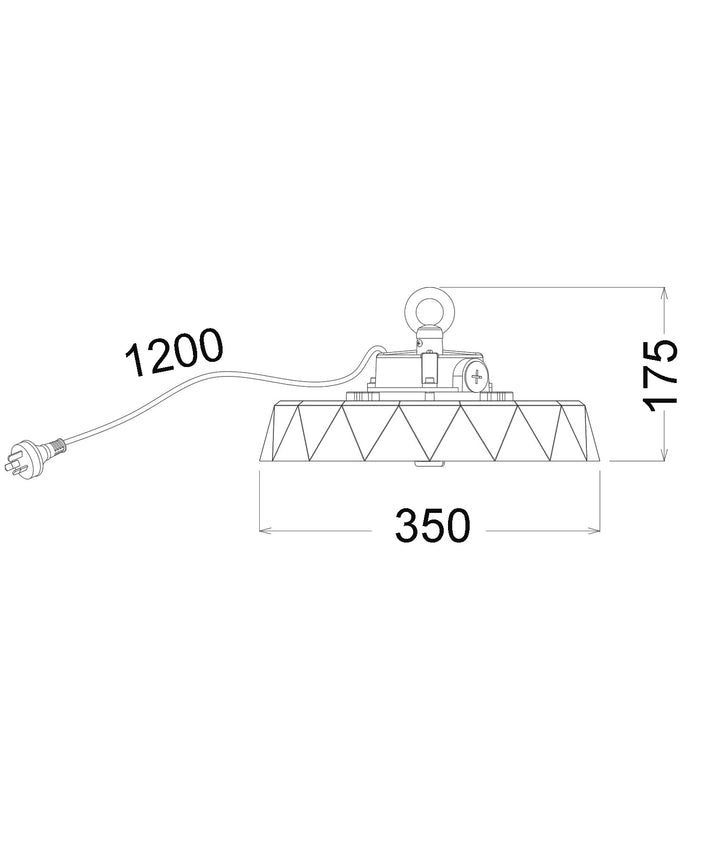

  • Dimensions (H x L x W): 200mm x 400mm x 400mm
  • Weight: 5 kg
Key Features
  • Input voltage range: 120-277V AC 50Hz
  • Constant current LED driver inbuilt
  • Tri-CCT (3000K/ 4000K / 5700K) in one fitting
  • Suitable for use with motion & microwave sensors
  • IP rating: IP65
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Warehouses, factories, and large retail spaces
  • Commercial: Gymnasiums, sports facilities, and exhibition halls
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • Energy-efficient design reduces power consumption and long-term waste.
Warranty Information

5 year replacement warranty.

Available Now

The HI BAY LED 100/150/200W RND TRI 90D IP65 is available now for immediate purchase. Ideal for industrial and commercial applications.


Lighting Requirement Calculator







This calculator follows relevant Australian standards to ensure reliable and compliant performance. It provides an estimated recommendation based on user inputs.
Users must verify specifications before purchasing.
