HT35A110VAC
BRAND: NHP

IME Combined CT and Transducers DC 35mm 2 Wire 400A In 0 to 4 to 20mA Out 110V AC Auxiliary


$701.70 List price: $931.80
+

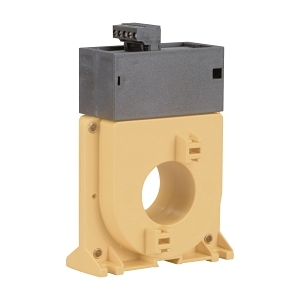

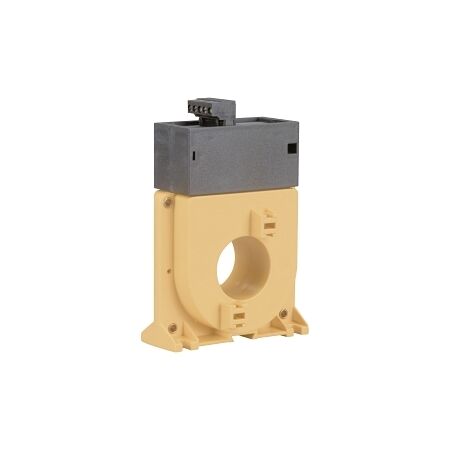

Product Name/Title: IME Combined CT and Transducers DC 35mm 2 Wire 400A In 0 to 4 to 20mA Out 110V AC Auxiliary

Brand: NHP

SKU: HT35A110VAC

Alternatively Known As: Current Transformer, CT Transducer, 400A Current Sensor

Technical Specifications
  • Primary Rated Current: 400 A
  • Secondary Rated Current: 0.02 A
  • Accuracy Class: 1
  • Power Loss: 4 W
  • Material Housing: Plastic
  • Model: Single-phase current converter
  • With Shock Protection: Yes
  • Number of Primary Inputs: 1
  • Opening Diameter: 35 mm
  • Storage Temperature: -25-70 °C
  • Dimensions (H x L x W): 100mm x 100mm x 50mm
  • Weight: 1.5 kg
Key Features
  • Combined Current Transformers and Transducers for accurate current measurement.
  • Shock protection for enhanced safety.
  • Calibrated for precise performance.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power monitoring and control systems
  • Commercial: Energy management solutions
  • General: Electrical measurement and monitoring
Standards & Compliance
  • Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
  • Energy-efficient design contributes to reduced power loss.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The IME Combined CT and Transducers is available now for immediate purchase. Ideal for industrial and commercial applications requiring precise current measurement.

Non-Returnable & Non-Cancellable

HT35A110VAC-AU-Combined-Current-Transformers-and-Transducers-Datasheet.pdf (HT35A110VAC-AU-Combined-Current-Transformers-and-Transducers-Datasheet.pdf, 255 Kb) [Download]
