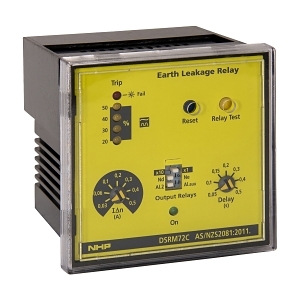

IME Earth Leakage Relay 2081 Mining Panel Mount 72 x 72mm 110V Ac 0 03Ma 5A

$1,748.30 List price: $2,321.50

+ −

30 Days Return Delivery Options

Description
Attachments

Product Name/Title: IME Earth Leakage Relay 2081 Mining Panel Mount 72 x 72mm 110V Ac 0 03Ma 5A

Brand: NHP

SKU: DSRM72C110

Alternatively Known As: Earth Leakage Relay, Residual Current Monitoring Relay

Technical Specifications

Voltage Type for Actuating: AC
Rated Control Supply Voltage: 94-121 V
Rated Frequency: 47-63 Hz
Number of Contacts: 2 (Change Over Contact)
Rated Burden: 2.5 VA
Rated Voltage: 97-127 V
Type of Electric Connection: Other
Reset Function Input: Yes
Min Adjustable Delay on Energization Time: 0.05 s
Max Permitted Delay on Energization Time: 0.5 s
Power Consumption: 3.5 W
Reset Function Automatic: No
Transformer Connection: Yes
With Alarm Function: Yes
Operating Temperature: -5 to 60 °C
Dimensions (H x L x W): 72mm x 75mm x 72mm
Weight: 0.5 kg

Key Features

Adjustable current range from 0.03 to 5 A.
Surface and panel mounting options.
IP40 front side protection and IP20 rear side protection.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Mining: Suitable for use in mining operations requiring reliable earth leakage protection.
Industrial: Ideal for industrial applications where safety is paramount.

Standards & Compliance

Complies with AS/NZS 3000 for electrical installation safety.

Environmental Benefits

Enhances safety in electrical installations, reducing the risk of electrical hazards.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The IME Earth Leakage Relay 2081 is available now for immediate purchase, ideal for mining and industrial applications.

DSRM72C110-AU-Earth-Leakage-Relay-Mining-Datasheet.pdf (DSRM72C110-AU-Earth-Leakage-Relay-Mining-Datasheet.pdf, 403 Kb) [Download]
