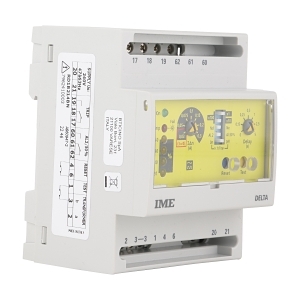

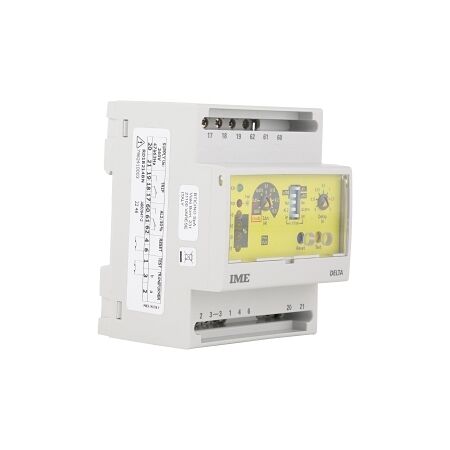

Product Name/Title: IME Earth Leakage Relay DIN Mount 4Pole 2 Changeover Contacts 110V AC
Brand: NHP
SKU: RD1B212
Alternatively Known As: Earth Leakage Relay, Residual Current Relay, RCD Relay
Technical Specifications
- Voltage Type for Actuating: AC
- Rated Control Supply Voltage: 97-127 V
- Rated Frequency: 47-63 Hz
- Number of Contacts: 2 Changeover Contacts
- Rated Burden: 2.5 VA
- Rated Voltage: 97-127 V
- Type of Electric Connection: Screw connection
- Reset Function Input: Yes
- Adjustable Current Range: 0.03-30 A
- Max Permitted Delay on Energization Time: 5 s
- Power Consumption: 2 W
- Reset Function Automatic: No
- Transformer Connection: Yes
- With Alarm Function: Yes
- Mounting Method: DIN rail
- Housing Material: Polycarbonate (PC)
- Degree of Protection IP Front Side: IP40
- Degree of Protection IP Rear Side: IP20
- Operating Temperature: -10-55 °C
- Dimensions (H x L x W): 89.5mm x 65.6mm x 70mm
- Weight: 0.5 kg
Key Features
- DIN rail mounting for easy installation.
- Adjustable current range from 0.03 to 30 A.
- Alarm function for enhanced safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery and equipment protection
- Commercial: Electrical installations requiring earth leakage protection
- Residential: Safety in home electrical systems
Standards & Compliance
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
- Enhances electrical safety, reducing the risk of electrical fires and accidents.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The IME Earth Leakage Relay DIN Mount 4Pole 2 Changeover Contacts 110V AC is available now for immediate purchase. Ideal for industrial, commercial, and residential applications.
