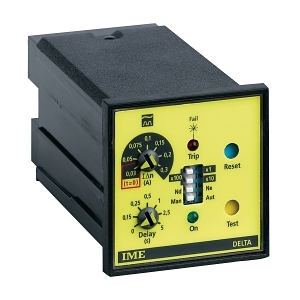

Product Name/Title: IME Earth Leakage Relay Panel Mount 48 x 48mm 1 Changeover Contact 240V AC
Brand: NHP
SKU: RD1DF14
Alternatively Known As: Earth Leakage Relay, Residual Current Relay, RCD Relay
Technical Specifications
- Voltage Type for Actuating: AC
- Rated Control Supply Voltage: 204-264 V
- Rated Frequency: 47-63 Hz
- Number of Contacts: 1 Changeover Contact
- Rated Burden: 2.5 VA
- Rated Voltage: 204-264 V
- Type of Electric Connection: Other
- Max Permitted Delay on Energization Time: 5 s
- Power Consumption: 2 W
- Transformer Connection: Yes
- With Alarm Function: Yes
- Operating Temperature: -5 to 50 °C
- Dimensions (H x L x W): 48mm x 113mm x 48mm
- Weight: 0.5 kg
Key Features
- Adjustable current range from 0.03 to 30 A.
- Automatic reset function for convenience.
- Surface and panel mounting options available.
- IP40 front protection and IP20 rear protection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery and equipment protection
- Commercial: Electrical installations requiring earth leakage protection
- Residential: Safety in home electrical systems
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Enhances electrical safety, reducing the risk of electrical fires and accidents.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The IME Earth Leakage Relay Panel Mount is available now for immediate purchase, ideal for ensuring safety in electrical systems.
