XSEN003PIR
BRAND: Mercator

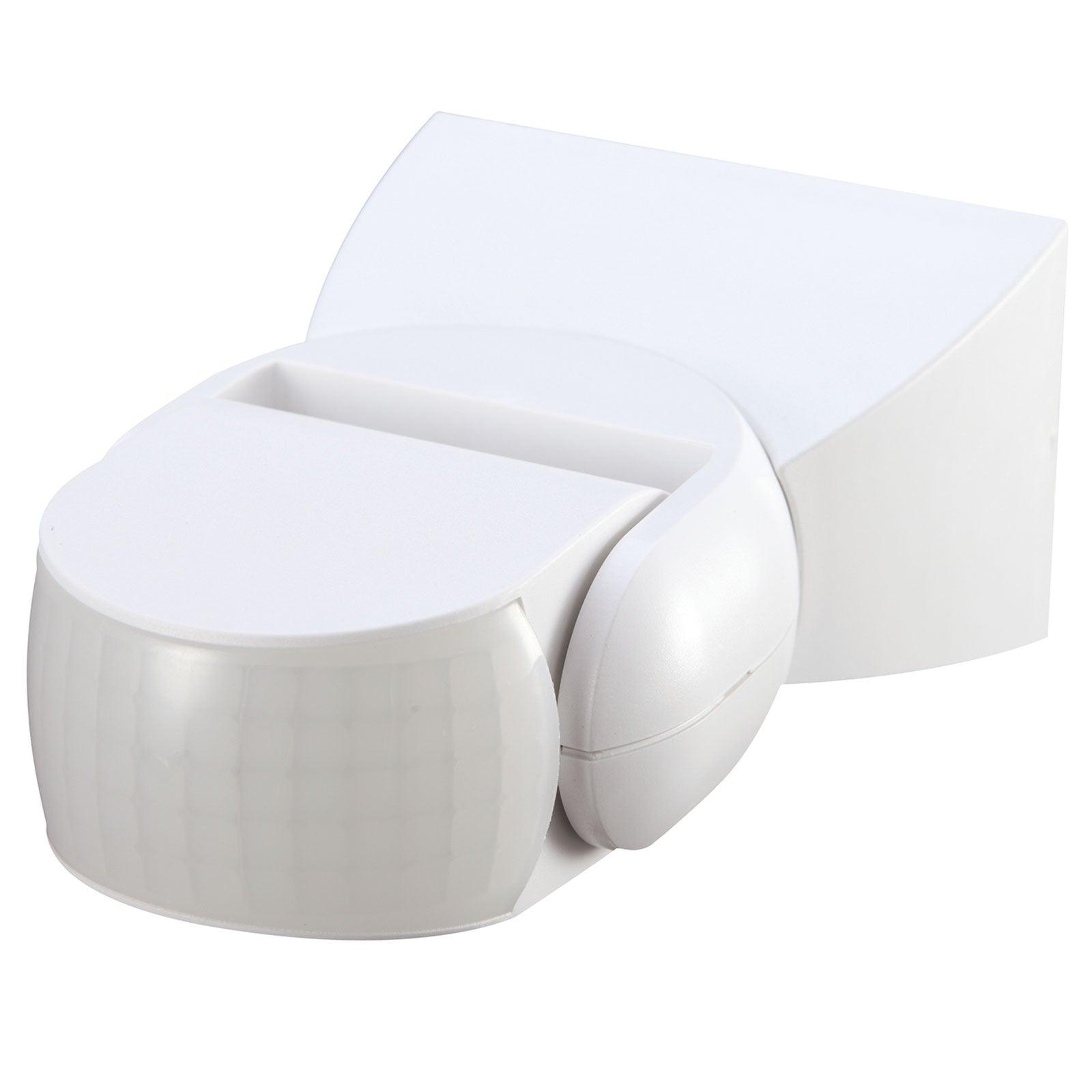

IP65 PIR Sensor


$22.50 List price: $29.70
+

Product Name/Title: IP65 PIR Sensor

Brand: Mercator

SKU: XSEN003PIR

Alternatively Known As: PIR Motion Sensor, Passive Infrared Sensor, Security Sensor

Technical Specifications
  • Rated load: Max 1200W (incandescent), Max 300W (energy saving lamp)
  • Detection range: 180° up to 12 meters
  • Time delay: Adjustable from 10 seconds to 15 minutes
  • LUX sensitivity: Adjustable
  • Dimensions (H x L x W): 100mm x 100mm x 100mm
  • Weight: 0.5 kg
Key Features
  • IP65 passive infrared sensor
  • Adjustable head
  • Rated load: Max 1200W (incandescent) Max 300W (energy saving lamp)
  • 180° detection range to 12 meters
  • 10 seconds to 15 minutes adjustable time delay
  • Adjustable LUX sensitivity
  • With override function
  • Mounting position Wall or ceiling
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, outdoor areas
  • Commercial: Retail, hospitality, security applications
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Energy-efficient operation reduces electricity consumption.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The IP65 PIR Sensor is available now for immediate purchase. Ideal for enhancing security in residential and commercial spaces.
