XSEN006WHT
BRAND: Mercator

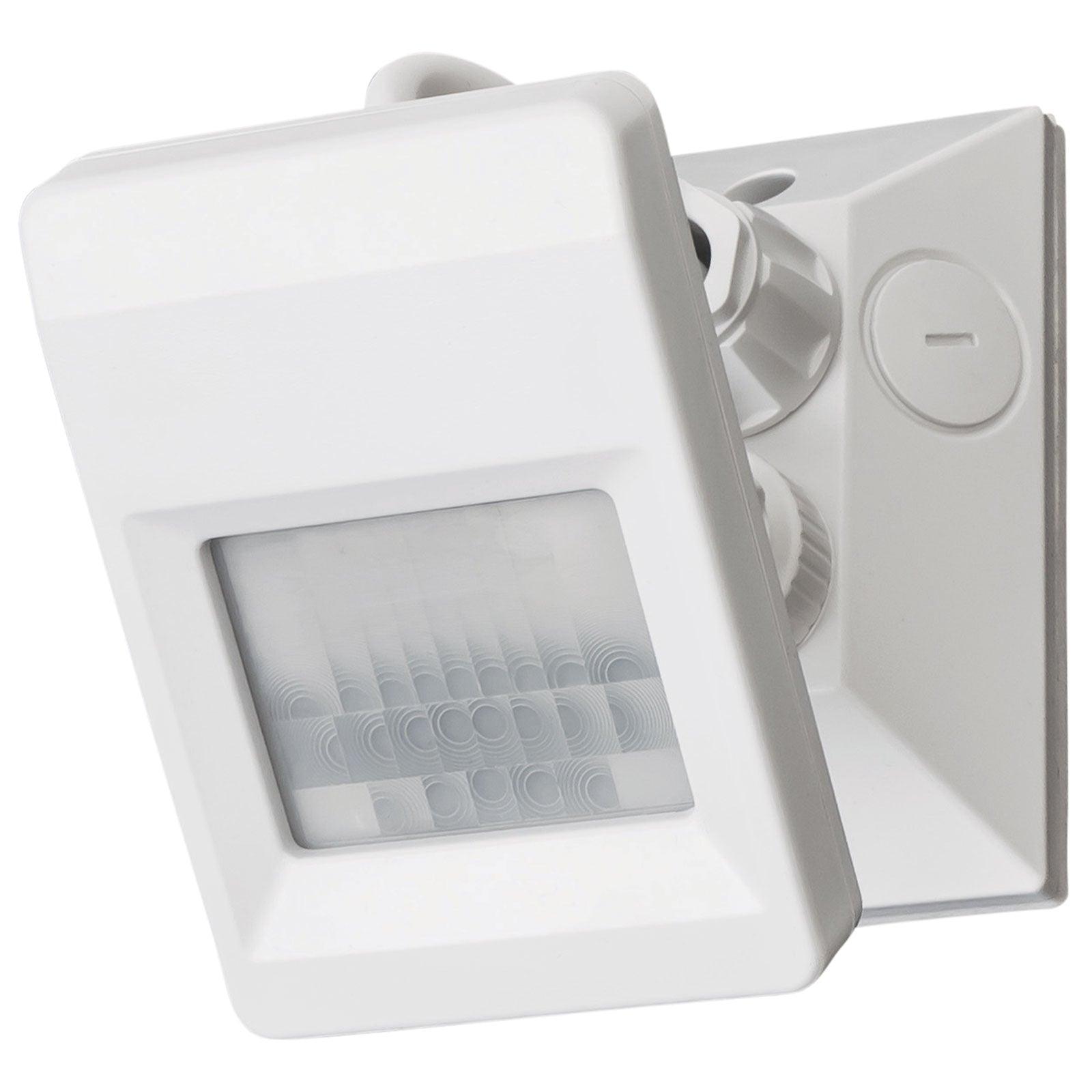

IP66 Sensor Indoor/Outdoor Infrared Motion Sensor


$36.10 List price: $47.60
+

Product Name/Title: IP66 Sensor Indoor/Outdoor Infrared Motion Sensor

Brand: Mercator

SKU: XSEN006WHT

Alternatively Known As: Infrared Motion Detector, Outdoor Motion Sensor, Security Motion Sensor

Technical Specifications
  • Rated load: Max 2000W (incandescent), Max 1000W (energy saving lamp)
  • Detection angle: 120 degrees
  • Detection distance: Up to 18 meters
  • Adjustable time: 10 seconds to 30 minutes
  • Adjustable LUX sensitivity: 3-2000 LUX
  • Installation height: 1.8m – 2.5m
  • Dimensions (H x L x W): 100mm x 100mm x 100mm
  • Weight: 0.5 kg
Key Features
  • Adjustable Sensor head
  • Rated load: Max 2000W (incandescent) Max 1000W (energy saving lamp)
  • Detection: 120 degrees wide, up to 18 meters distance
  • Adjustable Time: 10 seconds-30 minutes
  • Adjustable LUX sensitivity: 3-2000 LUX
  • Multi-sensors connecting in parallel are suitable for 2 x 20mm side entry conduit openings
  • With override function
  • 3 wire design
  • Installation Height: 1.8m – 2.5m
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Residential: Homes, gardens, driveways
  • Commercial: Retail, warehouses, outdoor areas
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
  • Energy-efficient operation reduces electricity consumption.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The IP66 Sensor Indoor/Outdoor Infrared Motion Sensor is available now for immediate purchase. Ideal for enhancing security in residential and commercial spaces.
