LB100840/S

Lambert Encl 1000x 800x400 S/S


$10,090.30 List price: $12,682.40

Free pick up (over 25 kg)
For delivery quote message

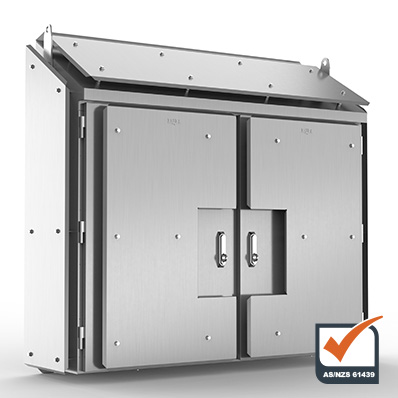

Product Name/Title: Lambert Encl 1000x 800x400 S/S

Brand: B&R Enclosures

SKU: LB100840/S

Alternatively Known As: 316 Stainless Steel Enclosure, Industrial Enclosure, IP66 Enclosure

Technical Specifications
  • Material: 1.5mm 316 stainless steel
  • Protection Rating: IP66
  • Wind Rating: Region D to AS1170.2-2002
  • Locking Mechanism: 3-point locking
  • Door Opening Angle: 110º
  • Dimensions (H x L x W): 1000mm x 400mm x 800mm
  • Weight: 250 kg
Key Features
  • IP66 protection rating
  • Removable doors with pintle hinges
  • Sunshades on all exposed panels
  • 30° sloping roof to prevent build up of water and solids
  • LockSock protective lock cover (IP55)
  • Door opening angle of 110º with door stay fitted
  • 3-point locking
  • Easy to install with top and bottom mounting flanges
  • Robust lifting lugs
  • Flat faced gutter
  • Single full width rear mounting pan
  • Optional side mounting pans that don’t obstruct rear mounting pan
  • Region D wind rated to AS1170.2-2002
  • Full width steel rear mounting pan powdercoated white
  • Padlockable swing handle
  • 3mm brass gland plate
  • Door rails
  • Earth strap kit
  • Manufactured from 1.5mm 316 stainless steel
  • Formed in place Polyurethane gasket
  • ASSDA approved N4 surface finish
Professional Installation Requirements
  • Professional installation is recommended for optimal safety and compliance.
Applications
  • Local control stations
  • Mini control consoles
  • Motor isolators in conveyor runs
Standards & Compliance
  • Complies with AS/NZS 1170 for structural design actions.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Lambert LB – 316SS Industrial Enclosure is available now for immediate purchase. Ideal for industrial applications requiring robust protection.
