Trade Discount 23%
FLLCLCOM4V2
BRAND: CERTECH

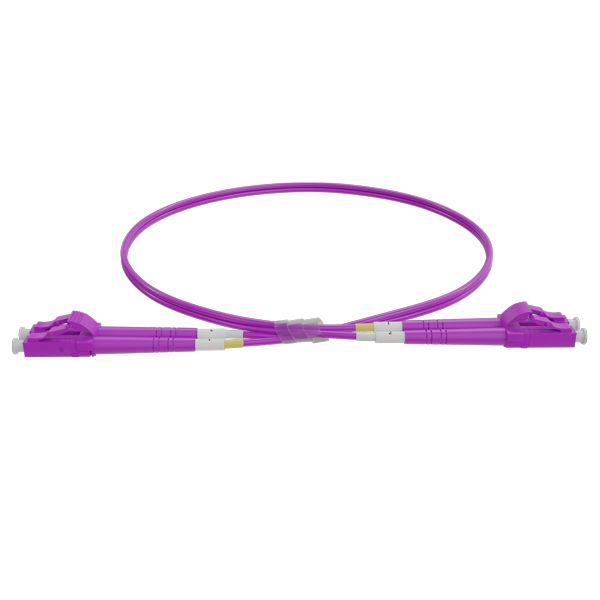

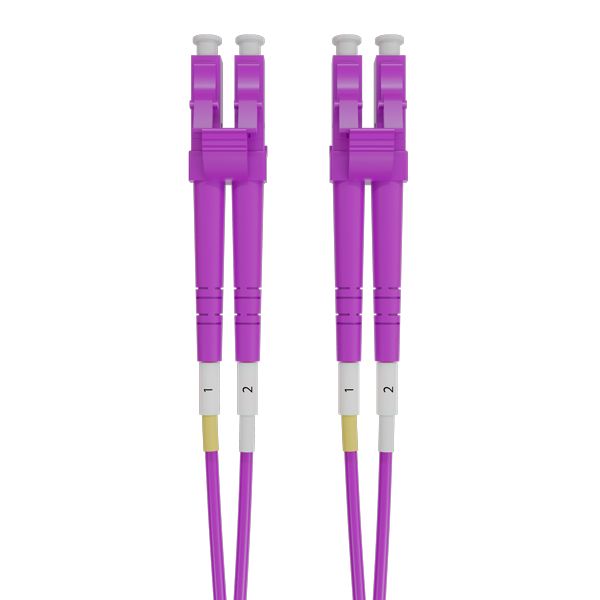

LC-LC OM4 Duplex Fibre Lead, Violet LSZH Jacket - 2m


$19.50 List price: $25.30
+

Product Name/Title: LC-LC OM4 Duplex Fibre Lead, Violet LSZH Jacket - 2m

Brand: Certech

SKU: FLLCLCOM4V2

Alternatively Known As: OM4 Duplex Fibre Lead, LC-LC Fibre Patch Cable, 10 Gb/s Fibre Lead

Technical Specifications
  • Fibre Type: YOFC MaxBand 550
  • Core/Clad Diameter: 50/125um
  • Wavelength: 850nm
  • Effective Modal Bandwidth: Minimum 4700 MHz-km
  • Differential Mode Delay: Controlled index profile
  • Aramid Yarn for strength and durability
  • Dimensions (H x L x W): n/a mm x 2000mm x n/a mm
  • Weight: 0.2 kg
Key Features
  • Designed for 10 Gb/s Ethernet applications
  • Supports link lengths up to 550 meters
  • Compatible with both LED and VCSEL transmitters
  • Manufactured using advanced Plasma activated Chemical Vapor Deposition (PCVD) process
Professional Installation Requirements
  • Professional installation is recommended for optimal performance and reliability.
Applications
  • Data centers and server rooms
  • Telecommunications networks
  • High-speed data transmission in commercial buildings
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • LSZH jacket reduces toxic emissions in case of fire.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The LC-LC OM4 Duplex Fibre Lead, Violet LSZH Jacket - 2m is available now for immediate purchase. Ideal for high-speed data transmission applications.

Specification Sheet (fllclcom4v2_u.pdf, 287 Kb) [Download]
