BRAND: CERTECH

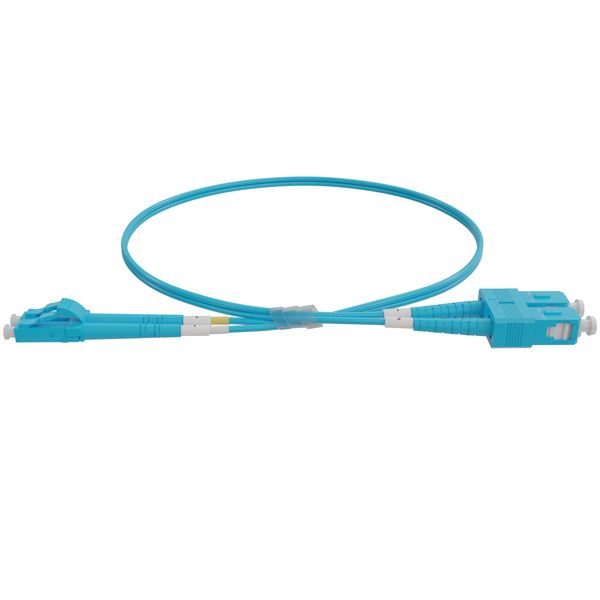

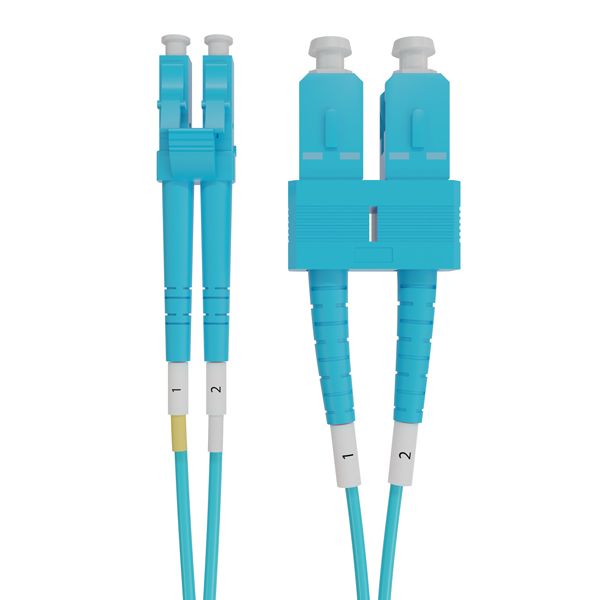

LC-SC OM4 Duplex Fibre Lead, Aqua LSZH Jacket - 5m


$26.00 List price: $33.90
+

Product Name/Title: LC-SC OM4 Duplex Fibre Lead, Aqua LSZH Jacket - 5m

Brand: Certech

SKU: FLLCSCOM45

Alternatively Known As: Fibre Patch Lead, OM4 Duplex Fibre Cable, LC-SC Fibre Lead

Technical Specifications
  • Fibre Type: OM4 50/125
  • Core Diameter: 50um
  • Clad Diameter: 125um
  • Maximum Link Length: 550m
  • Effective Modal Bandwidth: 4700 MHz-km
  • Transmission: 10 Gb/s Ethernet
  • Material: Aramid Yarn and LSZH Jacket
  • Dimensions (H x L x W): n/a mm x 5000mm x n/a mm
  • Weight: 0.2 kg
Key Features
  • Designed for 10 Gb/s Ethernet applications
  • Supports link lengths up to 550 meters
  • Compatible with both LED and VCSEL transmitters
  • Manufactured using advanced Plasma activated Chemical Vapor Deposition (PCVD) process
Professional Installation Requirements
  • Professional installation is recommended for optimal performance and reliability.
Applications
  • Data centers and server rooms
  • Telecommunications networks
  • High-speed data transmission in commercial buildings
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Low-smoke zero-halogen (LSZH) jacket reduces harmful emissions in case of fire.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The LC-SC OM4 Duplex Fibre Lead, Aqua LSZH Jacket - 5m is available now for immediate purchase. Ideal for high-speed data transmission applications.

Specification Sheet (fllcscom45_u.pdf, 287 Kb) [Download]
