TM4ES4
BRAND: Clipsal

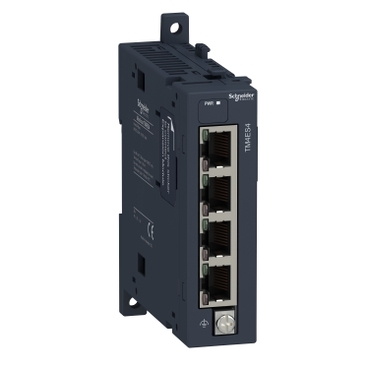

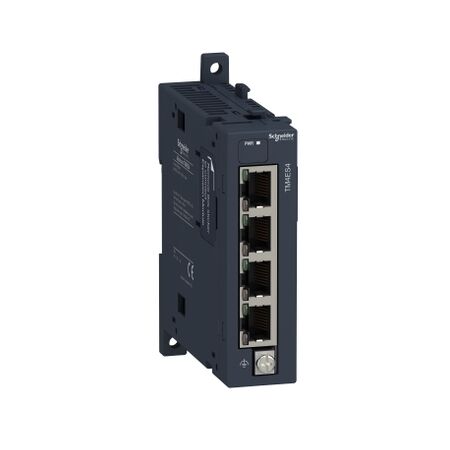

Modicon M241, Module Network TM4 4 Ethernet Switch


$464.90 List price: $697.40
+

Product Name/Title: Modicon M241, Module Network TM4 4 Ethernet Switch

Brand: Clipsal

SKU: TM4ES4

Alternatively Known As: Modicon Ethernet Switch, TM4 Ethernet Module, Modicon M241 Network Module

Technical Specifications
  • Product type: Ethernet unmanaged switch
  • Integrated connection type: Ethernet with 4 RJ45 connectors
  • Communication port protocol: Ethernet IP/Modbus TCP
  • Local signalling: 1 LED for power, 1 LED per channel for Ethernet link and activity
  • Surge withstand: 1 kV power lines (DC) common mode
  • Operating temperature: -10...55 °C
  • Storage temperature: -25...70 °C
  • IP degree of protection: IP20
  • Dimensions (H x L x W): 90mm x 90mm x 25mm
  • Weight: 0.125 kg
Key Features
  • Provides an Ethernet connection with 4 ports for Modicon M241/251 controllers.
  • Equipped with 4 x RJ45 connectors (10/100 Mbps, MDI/MDIX).
  • Supports Ethernet IP/Modbus TCP communication protocols.
Professional Installation Requirements
  • Professional installation is recommended for optimal performance.
Applications
  • Industrial: Automation systems, control networks
  • Commercial: Building management systems, data centers
Standards & Compliance
  • Complies with UL 508 and IEC 61131-2 standards.
Environmental Benefits
  • Packaging made with recycled cardboard.
  • PVC free.
Warranty Information

Standard warranty as per manufacturer guidelines.

Available Now

The Modicon M241 Module Network TM4 4 Ethernet Switch is available now for immediate purchase. Ideal for industrial automation and control applications.

TM4ES4 (TM4ES4, 238 Kb) [Download]
