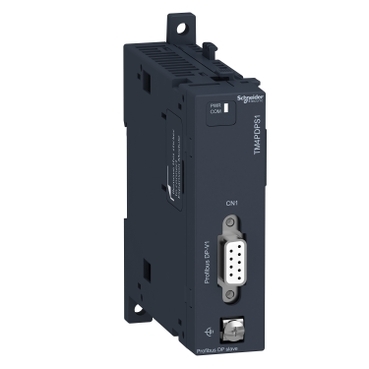

Product Name/Title: Modicon M241, Network Switch Module, 1 Profibus DP Slave
Brand: Clipsal
SKU: TM4PDPS1
Alternatively Known As: Profibus DP Communication Module, Modicon M241 Communication Module
Technical Specifications
- Product type: Profibus DP communication module.
- Compatibility: Modicon M241 and M251 logic controllers.
- Integrated connection type: Profibus DP female SUB-D 9 connector.
- Communication port protocol: Profibus DP V0/V1.
- Current consumption: 290 mA at 5 V DC.
- Power dissipation: 1.5 W.
- Transmission rate: Up to 12 Mbit/s depending on bus length.
- Insulation: 1000 V DC between bus and internal logic.
- Electrical connection: Screw connector terminal and SUB-D 9 connector.
- IP Rating: IP20 with protective cover.
- Dimensions (H x L x W): 90mm x 90mm x 25mm
- Weight: 0.1 kg
Key Features
- Provides slave Profibus DP communication.
- Equipped with a 9-way SUB-D connector.
- Local signaling with LED indicators for power supply and communication.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial: Integration with Modicon M241 and M251 controllers for communication.
Standards & Compliance
- Complies with IEC 61131-2 and UL 508 standards.
Environmental Benefits
- Packaging made with recycled cardboard.
- PVC free.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Clipsal Modicon M241 Network Switch Module is available now for immediate purchase. Ideal for industrial applications requiring reliable communication.
