TM3DI16
BRAND: Clipsal

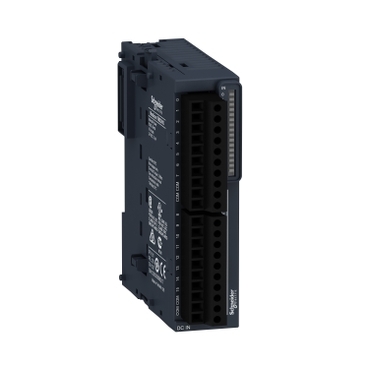

Modicon TM3, Discrete input module, 16 inputs (screw) 24 VDC


$464.90 List price: $697.40
+

Product Name/Title: Modicon TM3, Discrete input module, 16 inputs (screw) 24 VDC

Brand: Clipsal

SKU: TM3DI16

Alternatively Known As: Modicon TM3 Input Module, Discrete Input Module, 24V DC Input Module

Technical Specifications
  • Input Voltage: 24 VDC
  • Input Current: 7 mA per input
  • Response Time: 4 ms
  • IP Rating: IP20
  • Operating Temperature: -10 to 35 °C (vertical), -10 to 55 °C (horizontal)
  • Storage Temperature: -25 to 70 °C
  • Relative Humidity: 10 to 95% without condensation
  • Electrical Connection: 10 x 1.5 mm² removable screw terminal block
  • Dimensions (H x L x W): 90mm x 84.6mm x 27.4mm
  • Weight: 0.1 kg
Key Features
  • 16 discrete inputs for versatile control
  • Compatible with Modicon M241, M251, M221, and M262
  • Local LED indication for input status
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended for optimal performance.
Applications
  • Industrial automation systems
  • Control systems for machinery
  • Building management systems
Standards & Compliance
  • Complies with IEC 61131-2 for programmable controllers
Environmental Benefits
  • Packaging made with recycled cardboard
  • PVC free
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Clipsal Modicon TM3 Discrete Input Module is available now for immediate purchase. Ideal for industrial automation applications.

TM3DI16 (TM3DI16, 382 Kb) [Download]
