Trade Discount 33%
TM3DI8A
BRAND: Clipsal

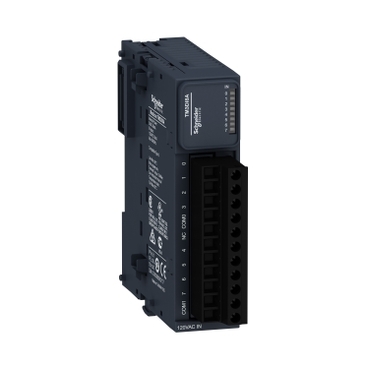

Modicon TM3, Discrete input module, 8 inputs (screw) 120 VAC


$326.40 List price: $489.60
+

Product Name/Title: Modicon TM3, Discrete input module, 8 inputs (screw) 120 VAC

Brand: Clipsal

SKU: TM3DI8A

Alternatively Known As: Modicon TM3 Input Module, Discrete Input Module, 120 VAC Input Module

Technical Specifications
  • Discrete input voltage: 120 V
  • Discrete input current: 7.5 mA
  • Response time: 25 ms (turn-on), 30 ms (turn-off)
  • IP Rating: IP20 with protective cover
  • Operating temperature: -10...35 °C (vertical), -10...55 °C (horizontal)
  • Storage temperature: -25...70 °C
  • Relative humidity: 10...95% without condensation
  • Dimensions (H x L x W): 90mm x 84.6mm x 27.4mm
  • Weight: 0.23 kg
Key Features
  • 8 discrete inputs for 120 VAC
  • Local LED indication for input status
  • Compatible with Modicon M241, M251, M221, M262
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended for optimal performance.
Applications
  • Industrial automation systems
  • Control systems for machinery
  • Building management systems
Standards & Compliance
  • Complies with IEC 61131-2 for programmable controllers.
Environmental Benefits
  • Packaging made with recycled cardboard
  • PVC free
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Clipsal Modicon TM3 Discrete Input Module is available now for immediate purchase. Ideal for industrial automation applications.

TM3DI8A (TM3DI8A, 377 Kb) [Download]
