TM3XREC1
BRAND: Clipsal

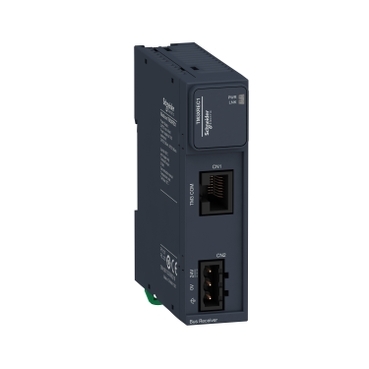

Modicon TM3, Remote receiver module


$279.10 List price: $418.60
+

Product Name/Title: Modicon TM3, Remote receiver module

Brand: Clipsal

SKU: TM3XREC1

Alternatively Known As: Modicon Remote Receiver, TM3 Receiver Module

Technical Specifications
  • Rated supply voltage: 24 V DC
  • Maximum number of I/O expansion modules: 7
  • Power supply output current: 560 mA for expansion bus
  • Current consumption: 40 mA at 24 V DC
  • Maximum power dissipation: 1 W
  • Cable distance between devices: 0.5 mm extension cable with 2 RJ45 conductors
  • Electrical connection: RJ45 connector and removable screw terminal block
  • Resistance to electrostatic discharge: 8 kV in air
  • Operating altitude: 0...2000 m
  • Vibration resistance: 3.5 mm at 5-8.4 Hz on DIN rail
  • Dimensions (H x L x W): 90mm x 73.3mm x 23.65mm
  • Weight: 0.075 kg
Key Features
  • Compatible with Modicon M221, M251, M241, and M262.
  • Local signaling with 2 green LEDs for power supply and link status.
  • Mounting support for top hat type TH35-15 and TH35-7.5 rails.
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended for optimal performance.
Applications
  • Industrial: Automation systems, remote control applications
Standards & Compliance
  • Complies with IEC 61131-2 and UL 508.
Environmental Benefits
  • Packaging made with recycled cardboard.
  • PVC free.
Warranty Information

Standard warranty applies.

Available Now

The Clipsal Modicon TM3 Remote Receiver Module is available now for immediate purchase. Ideal for industrial automation applications.

TM3XREC1 (TM3XREC1, 363 Kb) [Download]
