IP61215

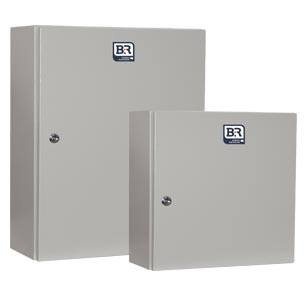

Monarch IP 1600Hx600Wx500D IP66 Steel RAL7032


$4,018.80 List price: $5,051.30
+

Product Name/Title: Monarch IP 1600Hx600Wx500D IP66 Steel RAL7032

Brand: B&R Enclosures

SKU: IP61215

Alternatively Known As: Monarch IP Enclosure, Zinc Coated Steel Enclosure, IP66 Enclosure

Technical Specifications
  • Material: 1.6mm thick zinc coated steel
  • Protection Rating: IP66
  • Wind Rating: Region D wind rated to AS1170.2-2002
  • Hinges: Stainless steel hinges and hinge pins
  • Dimensions (H x L x W): 600mm x 600mm x 1600mm
  • Weight: 0.5 kg
Key Features
  • IP66 protection rating
  • C rail mountings for equipment
  • Gland plate on all but 175 and 270mm deep enclosures
  • Vertical body and door rails
  • 3 point locking on models of 600mm high and above
  • Lockable L handle on enclosures 1600mm high and above
  • Mounting pan is optional extra
  • Region D wind rated to AS1170.2-2002
  • 1.6mm thick zinc coated steel
  • Stainless steel hinges and hinge pins for easy door opening
  • Concealed removable hinging
  • Polyurethane gasket (formed in place)
  • Pebble Grey (RAL7032) powdercoated paint finish or Ripple Orange
Professional Installation Requirements
  • Professional installation is recommended for optimal safety and compliance.
Applications
  • Small motor control applications
  • Lighting
  • CT metering
  • Small switchboards
Standards & Compliance
  • Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Monarch IP – Zinc Coated Steel is available now for immediate purchase. Ideal for industrial applications requiring robust and flexible enclosures.
