IP69295/WG

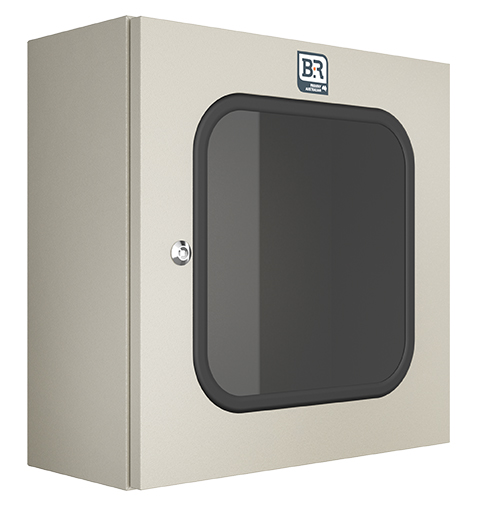

Monarch IP 1800Hx800Wx500D IP66 St 7032 VW Glass


$6,644.30 List price: $8,351.20

Free pick up (over 25 kg)
For delivery quote message

Product Name/Title: Monarch IP 1800Hx800Wx500D IP66 St 7032 VW Glass

Brand: B&R Enclosures

SKU: IP69295/WG

Alternatively Known As: Monarch IP Enclosure, Industrial Steel Enclosure, IP66 Enclosure

Technical Specifications
  • 1.6mm thick zinc coated steel
  • 1.6mm steel gland plate (brass available as an option)
  • Polyurethane gasket (formed in place)
  • Pebble Grey (RAL7032) or Ripple Orange (X15) powdercoated finish
  • 5.4mm thick glass viewing window
  • Dimensions (H x L x W): 600mm x 800mm x 1800mm
  • Weight: 50 kg
Key Features
  • IP66 protection rating
  • C rail mountings for equipment
  • Glass Viewing Window
  • 3 point locking on models of 600mm high and above
  • Stainless steel hinges and hinge pins for easy door opening
Professional Installation Requirements
  • Professional installation by a qualified technician is recommended for optimal performance and safety.
Applications
  • Small motor control applications
  • Lighting
  • CT metering
  • Small switchboards
Standards & Compliance
  • Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
  • Region D wind rated to AS1170.2-2002 for structural design actions.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Monarch IP – Viewing Window (ZS) is available now for immediate purchase. Ideal for industrial applications requiring robust and flexible enclosures.

Specification Sheet (, 440 Kb) [Download]

Specification Sheet (, 439 Kb) [Download]
