Home/Data/Cabinets/IP Rated Cabinets/Monarch IP 2000Hx600Wx800D IP66 SS N4 VW Glass

Trade Discount 20%

SKU: IP77218/S/WG

BRAND: B&R Enclosures

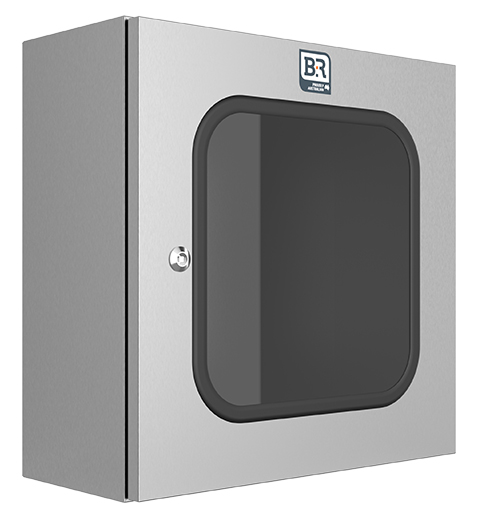

Monarch IP 2000Hx600Wx800D IP66 SS N4 VW Glass

$13,393.40 List price: $16,834.10

Free pick up (over 25 kg)

For delivery quote message

30 Days Return Delivery Options

Description
Attachments

Product Name/Title: Monarch IP 2000Hx600Wx800D IP66 SS N4 VW Glass

Brand: B&R Enclosures

SKU: IP77218/S/WG

Alternatively Known As: Monarch IP Viewing Window, Stainless Steel Viewing Window, Industrial Enclosure with Viewing Window

Technical Specifications

Protection Rating: IP66
Material: 1.2/1.5mm thick 316 stainless steel
Viewing Window Thickness: 5.4mm glass
Wind Rating: Region D wind rated to AS1170.2-2002
Dimensions (H x L x W): 600mm x 800mm x 2000mm
Weight: 50 kg

Key Features

IP66 protection rating
C rail mountings for equipment
Gland plate fitted internally or externally on units 400mm or above
Vertical body and door rails
3 point locking on models of 600mm high and above
Lockable L handle on enclosures 1600mm high and above
Glass Viewing Window
1.2/1.5mm thick 316 stainless steel
Stainless steel hinges and hinge pins for easy door opening
Concealed removable hinging
Polyurethane gasket (foamed in place)
ASSDA approved N4 surface finish

Professional Installation Requirements

Professional installation is recommended to ensure compliance with safety standards.

Applications

Industrial: Small motor control applications
Commercial: Lighting and CT metering
General: Small switchboards

Standards & Compliance

Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.

Environmental Benefits

Durable stainless steel construction reduces the need for frequent replacements, minimizing waste.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Monarch IP – Viewing Window (SS) is available now for immediate purchase. Ideal for industrial and commercial applications requiring robust and flexible enclosures.

Specification Sheet (, 440 Kb) [Download]

Specification Sheet (, 439 Kb) [Download]
