IP21294/S/WG

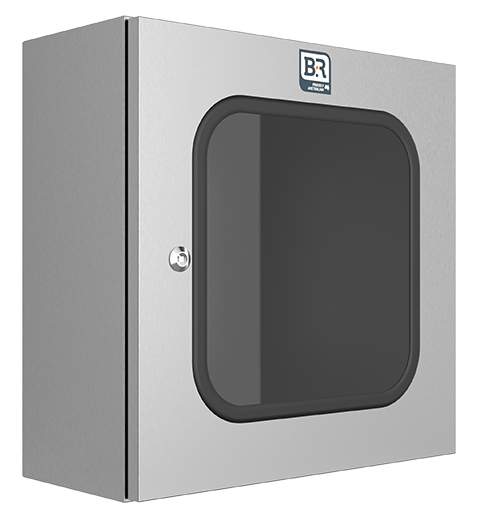

Monarch IP 600Hx800Wx400D IP66 SS N4 VW Glass


$5,724.30 List price: $7,194.80
+

Product Name/Title: Monarch IP 600Hx800Wx400D IP66 SS N4 VW Glass

Brand: B&R Enclosures

SKU: IP21294/S/WG

Alternatively Known As: Monarch IP Viewing Window, Stainless Steel Enclosure, IP66 Enclosure

Technical Specifications
  • Material: 1.2/1.5mm thick 316 stainless steel
  • Gland plate: 1.5mm 316 stainless steel (brass option available)
  • Polyurethane gasket (foamed in place)
  • ASSDA approved N4 surface finish
  • Region D wind rated to AS1170.2-2002
  • Dimensions (H x L x W): 800mm x 400mm x 600mm
  • Weight: 10 kg
Key Features
  • IP66 protection rating
  • C rail mountings for equipment
  • Glass Viewing Window
  • 3 point locking on models of 600mm high and above
  • Stainless steel hinges and hinge pins for easy door opening
Professional Installation Requirements
  • Professional installation is recommended for optimal performance and safety.
Applications
  • Industrial: Motor control applications
  • Commercial: Lighting and CT metering
  • General: Small switchboards
Standards & Compliance
  • Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
Environmental Benefits
  • Durable stainless steel construction reduces the need for frequent replacements.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Monarch IP – Viewing Window (SS) is available now for immediate purchase. Ideal for industrial and commercial applications requiring robust and flexible enclosures.
