Home/Electrical/Cabling/Cable/Low Voltage Cable / Garden Cable/Monarch IP 600Hx800Wx500D IP66 Steel RAL7032

Trade Discount 20%

SKU: IP21295

BRAND: B&R Enclosures

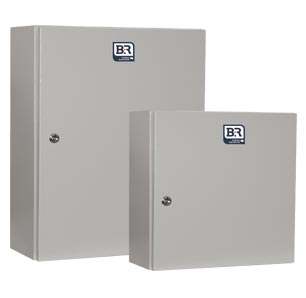

Monarch IP 600Hx800Wx500D IP66 Steel RAL7032

$2,343.90 List price: $2,946.00

+ −

30 Days Return Delivery Options

Description
Attachments

Product Name/Title: Monarch IP 600Hx800Wx500D IP66 Steel RAL7032

Brand: B&R Enclosures

SKU: IP21295

Alternatively Known As: Zinc Coated Steel Enclosure, IP66 Enclosure, Industrial Steel Enclosure

Technical Specifications

1.6mm thick zinc coated steel
1.6mm steel gland plate (brass also available as an option)
Pebble Grey (RAL7032) powdercoated paint finish or Ripple Orange – X15
Dimensions (H x L x W): 800mm x 800mm x 600mm
Weight: 0.5 kg

Key Features

IP66 protection rating
C rail mountings for equipment
Gland plate on all but 175 and 270mm deep enclosures
Vertical body and door rails
3 point locking on models of 600mm high and above
Lockable L handle on enclosures 1600mm high and above
Stainless steel hinges and hinge pins for easy door opening
Concealed removable hinging
Polyurethane gasket (formed in place)

Professional Installation Requirements

Professional installation is recommended for optimal safety and compliance.

Applications

Small motor control applications
Lighting
CT metering
Small switchboards

Standards & Compliance

Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
Region D wind rated to AS1170.2-2002: Structural design actions – Wind actions.

Environmental Benefits

Durable materials reduce the need for frequent replacements, minimizing waste.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Monarch IP – Zinc Coated Steel Enclosure is available now for immediate purchase, ideal for industrial applications.

Specification Sheet (, 439 Kb) [Download]
