IP21214/A/WG

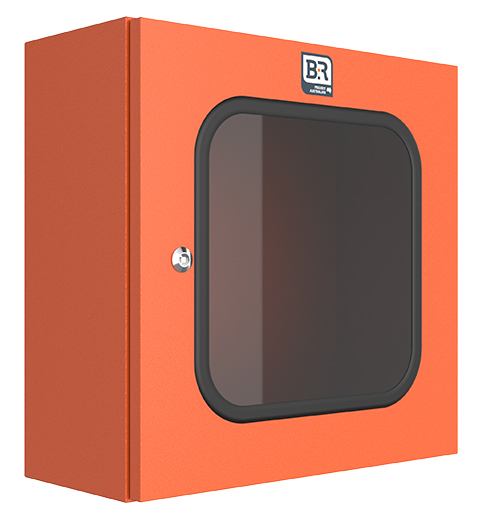

Monarch IP 607Hx607Wx402D IP66 Al 7035 VW Glass


$525.50
+

Product Name/Title: Monarch IP 607Hx607Wx402D IP66 Al 7035 VW Glass

Brand: B&R Enclosures

SKU: IP21214/A/WG

Alternatively Known As: Monarch IP Viewing Window, IP66 Viewing Window, Aluminium Viewing Window

Technical Specifications
  • Body: Aluminium
  • Body thickness: 2.5mm
  • Polyurethane gasket: formed in place
  • Powdercoated light grey RAL7035 or Ripple Orange – X15
  • Glass thickness: 5.4mm
  • C rail mountings
  • Gland plate: fitted internally or externally
  • Locking: 7mm square turnbuckle lock (below 1600mm high), lockable L handles (above 1600mm high), 3-point locking (600mm high and above)
  • Removable back: 400mm deep and above
  • Dimensions (H x L x W): 600mm x 607mm x 607mm
  • Weight: 5.0 kg
Key Features
  • IP66 protection rating
  • Vertical body and door rails
  • Earth strap kit comes as standard
  • Reversible doors (right hand hinging as standard)
  • Multiple mounting options
  • Wide range of accessories for added versatility
  • Glass Viewing Window
  • Region D wind rated to AS1170.2-2002
Professional Installation Requirements
  • Professional installation is recommended for optimal performance and safety.
Applications
  • Small motor control applications
  • Lighting
  • CT metering
  • Small switchboards
Standards & Compliance
  • Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Monarch IP – Viewing Window (AL) is available now for immediate purchase. Ideal for various small motor control and metering applications.
