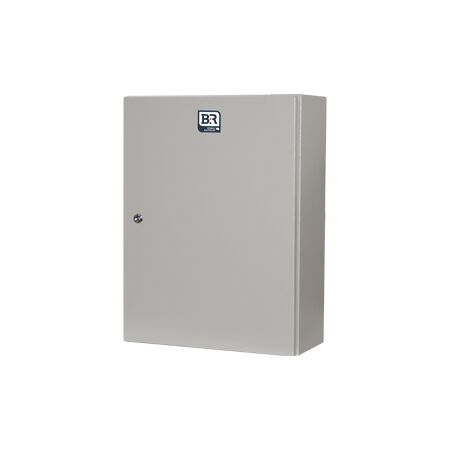

Product Name/Title: Monarch IP 807Hx607Wx402D IP66 Alum RAL7035
Brand: B&R Enclosures
SKU: IP29214/A
Alternatively Known As: Monarch IP Aluminium Enclosure, IP66 Enclosure, Aluminium Switchboard
Technical Specifications
- Body thickness: 2.5mm
- Polyurethane gasket (formed in place)
- Powdercoated light grey RAL7035 or Ripple Orange – X15 finish
- C rail mountings
- Gland plate (fitted internally or externally)
- 7mm square turnbuckle lock (below 1600mm high)
- Lockable L handles (above 1600mm high)
- 3-point locking (600mm high and above)
- Removable back (400mm deep and above)
- Dimensions (H x L x W): 600mm x 607mm x 807mm
- Weight: 0.402 kg
Key Features
- IP66 protection rating
- Vertical body and door rails
- Earth strap kit comes as standard
- Reversible doors (right hand hinging as standard)
- Multiple mounting options providing flexibility
- Wide range of accessories for added versatility
- Region D wind rated to AS1170.2-2002
Professional Installation Requirements
- Professional installation is recommended to ensure compliance with safety standards.
Applications
- Small motor control applications
- Lighting
- CT metering
- Small switchboards
Standards & Compliance
- Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
Environmental Benefits
- Durable aluminium construction reduces the need for frequent replacements, minimizing waste.
Warranty Information
Standard warranty applies, please check with the manufacturer for details.
Available Now
The Monarch IP – Aluminium is available now for immediate purchase, ideal for various electrical applications.
