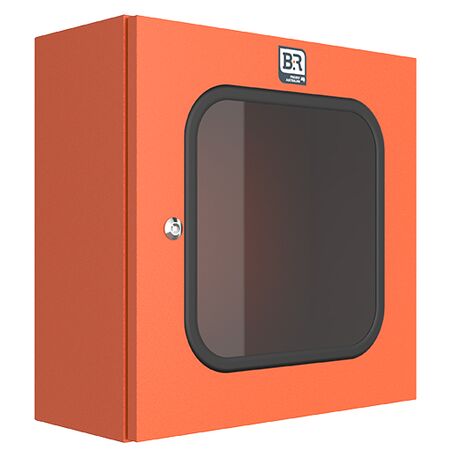

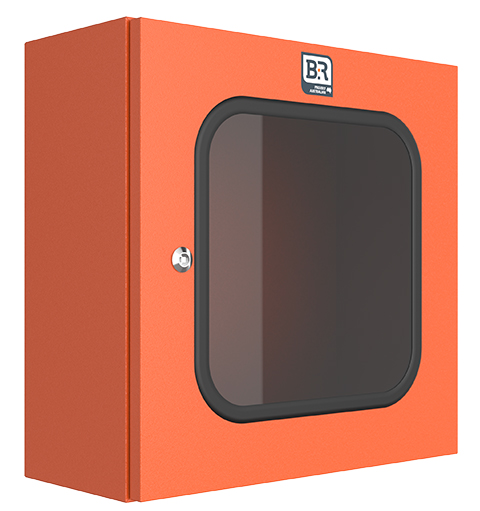

Product Name/Title: Monarch IP 807Hx607Wx602D IP66 Al 7035 VW Glass
Brand: B&R Enclosures
SKU: IP29216/A/WG
Alternatively Known As: Monarch IP Viewing Window, IP66 Viewing Window, Aluminium Viewing Window
Technical Specifications
- Body: Aluminium
- Body thickness: 2.5mm
- Polyurethane gasket: formed in place
- Powdercoated light grey RAL7035 or Ripple Orange – X15
- 5.4mm thick glass viewing window
- C rail mountings
- Gland plate: fitted internally or externally
- 7mm square turnbuckle lock (below 1600mm high)
- Lockable L handles (above 1600mm high)
- 3-point locking (600mm high and above)
- Removable back (400mm deep and above)
- Dimensions (H x L x W): 600mm x 607mm x 807mm
- Weight: 5.0 kg
Key Features
- IP66 protection rating
- Vertical body and door rails
- Earth strap kit comes as standard
- Reversible doors
- Multiple mounting options
- Wide range of accessories
- Glass Viewing Window
- Region D wind rated to AS1170.2-2002
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Small motor control applications
- Lighting
- CT metering
- Small switchboards
Standards & Compliance
- Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Monarch IP – Viewing Window (AL) is available now for immediate purchase. Ideal for various small motor control and lighting applications.
