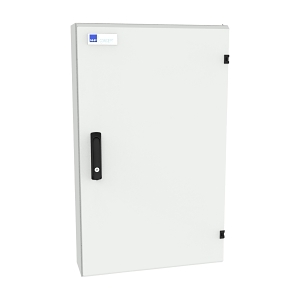

Product Name/Title: NHP Concept One Panelboard 864mm DIN 36 Way 200A MCCB Mains Switch Light Grey
Brand: NHP
SKU: COE36MCCB200LG
Alternatively Known As: NHP Distribution Board, NHP Panelboard, Concept One Distribution Board
Technical Specifications
- Rated Current: 250 A
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Insulation Voltage: 500 V
- Number of Poles (Main Switch): 3
- Neutral Terminal Block: Yes
- Earthing Terminal Block: Yes
- Spare DIN Equipment Space Poles: 16
- Material Housing: Steel
- Material Thickness: 1 mm
- Degree of Protection: IP40
- Impact Strength: IK07
- Mounting Method: Surface mounted (plaster)
- Dimensions (H x L x W): 864mm x 153mm x 530mm
- Weight: 20 kg
Key Features
- 36 outgoing ways for versatile circuit management.
- 200A rated main switch with circuit breaker functionality.
- IP40 rated for protection against solid objects and moisture.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and light industrial applications
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Durable steel construction reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept One Panelboard 864mm DIN 36 Way 200A MCCB Mains Switch Light Grey is available now for immediate purchase. Ideal for residential and commercial applications, ensuring reliable circuit management.
