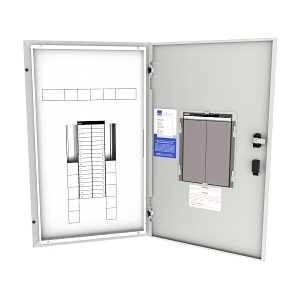

Product Name/Title: NHP Concept One Panelboard 864mm IP40 DIN 48 Way No Main Switch Light Grey
Brand: NHP
SKU: COE48LG
Alternatively Known As: NHP Distribution Board, NHP Panelboard, Small Distribution Board
Technical Specifications
- Rated Current: 250 A
- Number of Outgoing Ways: 48
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Insulation Voltage: 500 V
- Neutral Terminal Block: Yes
- Earthing Terminal Block: Yes
- Spare DIN Equipment Space Poles: 16
- Material Housing: Steel
- Material Thickness: 1 mm
- Degree of Protection: IP40
- Impact Strength: IK07
- Type of Cover: Door
- Material Thickness Cover: 1 mm
- With Lock: Yes
- Mounting Method: Surface mounted (plaster)
- Dimensions (H x L x W): 864mm x 153mm x 530mm
- Weight: 15 kg
Key Features
- 48 outgoing ways for versatile circuit management.
- IP40 rated for protection against solid objects larger than 1mm.
- Surface mounted design for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and light industrial applications
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Durable steel construction reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept One Panelboard 864mm IP40 DIN 48 Way No Main Switch Light Grey is available now for immediate purchase. Ideal for residential and commercial electrical distribution needs.
