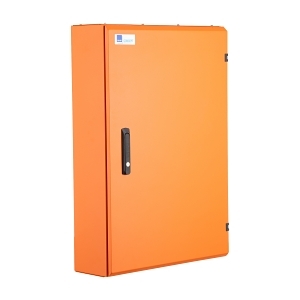

Product Name/Title: NHP Concept Plus P/board Metering 864mm IP42 Dual Energy Meter Split DIN-T 12 12 Way 250A MSW Orange
Brand: NHP
SKU: CPLMD1212M250O
Alternatively Known As: Dual Energy Meter, Split DIN Meter, Panelboard Metering
Technical Specifications
- Rated Current: 250 A
- Number of Outgoing Ways: 24
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Insulation Voltage: 500 V
- Number of Poles Main Switch: 3
- Neutral Terminal Block: Yes
- Earthing Terminal Block: Yes
- Spare DIN Equipment Space Poles: 14
- Material Housing: Steel
- Material Thickness: 1.6 mm
- Degree of Protection: IP42
- Impact Strength: IK10
- Mounting Method: Surface mounted (plaster)
- Dimensions (H x L x W): 864mm x 200mm x 600mm
- Weight: 25 kg
Key Features
- Integrated energy metering function for efficient energy management.
- Surface mounted design with a durable steel housing.
- IP42 rated for protection against solid objects larger than 1mm and against water spray.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for safety and compliance.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Retail spaces, offices, and light industrial applications
Standards & Compliance
- Complies with relevant Australian standards for electrical safety and performance.
Environmental Benefits
- Energy-efficient design supports sustainable energy usage.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept Plus P/board Metering is available now for immediate purchase. Ideal for residential and commercial energy management.
