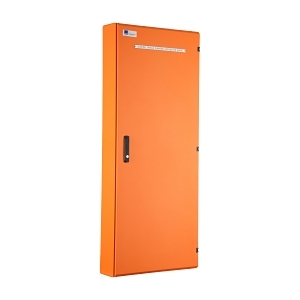

Product Name/Title: NHP Concept Plus Panelboard DIN-T EV and DCZ 48 Way 3x24 250A MSW 9M-1944mm Orange
Brand: NHP
SKU: CPLMSXCD48M250O
Alternatively Known As: EV Distribution Board, 48 Way Panelboard, NHP Panelboard
- Rated Current: 250 A
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 4 kV
- Rated Insulation Voltage: 500 V
- Number of Poles: 3
- Material Housing: Steel
- Material Thickness: 1.6 mm
- Degree of Protection: IP42
- Impact Strength: IK10
- Dimensions (H x L x W): 1944mm x 200mm x 600mm
- Weight: 50 kg
- 48 outgoing ways for extensive electrical distribution.
- Integrated energy metering function for monitoring usage.
- IP42 rated for protection against solid objects and water.
- Professional installation by a qualified electrician is required for safety and compliance.
- Residential: Homes with electric vehicle charging needs
- Commercial: Businesses requiring robust electrical distribution
- Industrial: Facilities with high power demands
- Complies with AS/NZS 3000 for electrical installations.
- Supports electric vehicle infrastructure, promoting sustainable transportation.
3 years warranty against manufacturing defects.
The NHP Concept Plus Panelboard is available now for immediate purchase, ideal for electric vehicle charging and electrical distribution needs.
