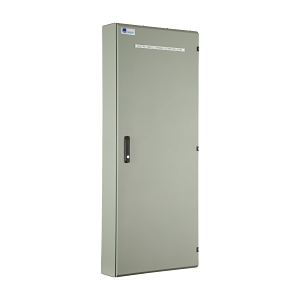

Product Name/Title: NHP Concept Plus Panelboard DIN-T EV and SCZ 72 Way 3x24 250A MSW 9M-1944mm Grey
Brand: NHP
SKU: CPLMSXCS72M250G
Alternatively Known As: NHP EV Distribution Board, NHP Panelboard, NHP 72 Way Distribution Board
Technical Specifications
- Rated Current: 250 A
- Number of Outgoing Ways: 72
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 4 kV
- Rated Insulation Voltage: 500 V
- Number of Poles (Main Switch): 3
- Material Housing: Steel
- Material Thickness: 1.6 mm
- Degree of Protection: IP42
- Impact Strength: IK10
- Mounting Method: Surface mounted (plaster)
- Dimensions (H x L x W): 1944mm x 200mm x 600mm
- Weight: 50 kg
Key Features
- 72 outgoing ways for extensive distribution needs.
- Integrated energy metering function for monitoring usage.
- Robust steel housing with IP42 protection.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for safety and compliance.
Applications
- Commercial: Industrial facilities, large buildings
- General: Electrical distribution in various settings
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Efficient energy distribution reduces overall energy waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept Plus Panelboard DIN-T EV and SCZ 72 Way 250A is available now for immediate purchase, ideal for commercial and industrial electrical distribution.
