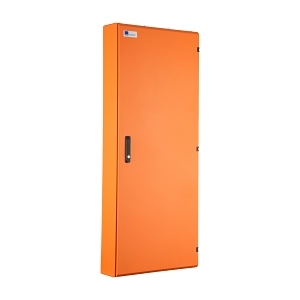

Product Name/Title: NHP Concept Plus Panelboard DIN-T Triple Metered Split 24/48/12 Way 250A MSW 8-1728mm Orange
Brand: NHP
SKU: CPLMT244812M250O
Alternatively Known As: NHP Triple Metered Panelboard, Concept Plus Distribution Board
Technical Specifications
- Rated Current: 250 A
- Number of Outgoing Ways: 84
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 4 kV
- Rated Insulation Voltage: 500 V
- Number of Poles (Main Switch): 3
- Neutral Terminal Block: Yes
- Earthing Terminal Block: Yes
- Spare DIN Equipment Space Poles: 21
- Material Housing: Steel
- Material Thickness: 1.6 mm
- Degree of Protection: IP42
- Impact Strength: IK10
- Mounting Method: Surface mounted (plaster)
- Dimensions (H x L x W): 1728mm x 200mm x 600mm
- Weight: 50 kg
Key Features
- Triple metered panelboard with integrated energy metering function.
- Surface mounted design with a durable steel housing.
- IP42 rated for protection against solid objects and water.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for safety and compliance.
Applications
- Commercial: Industrial facilities, large buildings, and infrastructure projects
- General: Any application requiring a robust electrical distribution solution
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
- Efficient energy metering helps in monitoring and reducing energy consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept Plus Panelboard is available now for immediate purchase, ideal for commercial and industrial applications.
