Home/Electrical/Switchboards/Distribution Boards/NHP Concept Plus Panelboard DIN-T Triple Metered Split 36/48/12 Way 250A MSW 9-1944mm Orange

Trade Discount 25%

SKU: CPLMT364812M250O

BRAND: NHP

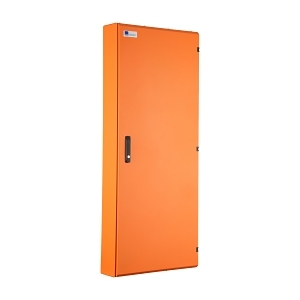

NHP Concept Plus Panelboard DIN-T Triple Metered Split 36/48/12 Way 250A MSW 9-1944mm Orange

$11,160.10 List price: $14,819.10

Free pick up (over 25 kg)

For delivery quote message

30 Days Return Delivery Options

Description
Attachments

Product Name/Title: NHP Concept Plus Panelboard DIN-T Triple Metered Split 36/48/12 Way 250A MSW 9-1944mm Orange

Brand: NHP

SKU: CPLMT364812M250O

Alternatively Known As: Triple Metered Panelboard, Electrical Distribution Board, NHP Panelboard

Technical Specifications

Rated Current: 250 A
Number of Outgoing Ways: 96
Max Rated Operation Voltage: 415 V
Rated Impulse Withstand Voltage: 4 kV
Rated Insulation Voltage: 500 V
Number of Poles Main Switch: 3
Neutral Terminal Block: Yes
Earthing Terminal Block: Yes
Integrated Energy Metering Function: Yes
Spare DIN Equipment Space Poles: 21
Material Housing: Steel
Material Thickness: 1.6 mm
Degree of Protection: IP42
Impact Strength: IK10
Mounting Method: Surface mounted (plaster)
Dimensions (H x L x W): 1944mm x 200mm x 600mm
Weight: 50 kg

Key Features

Triple metered panelboard with integrated energy metering function.
Surface mounted design with a durable steel housing.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Commercial: Industrial facilities, large buildings, and infrastructure projects
General: Any application requiring a robust electrical distribution solution

Standards & Compliance

Complies with AS/NZS 3000 for electrical installation standards.

Environmental Benefits

Efficient energy metering helps in monitoring and reducing energy consumption.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP Concept Plus Panelboard is available now for immediate purchase, ideal for commercial and industrial applications.

CPLMT364812M250O-AU-Triple-Metered-Panelboard---Orange-Datasheet.pdf (CPLMT364812M250O-AU-Triple-Metered-Panelboard---Orange-Datasheet.pdf, 212 Kb) [Download]
