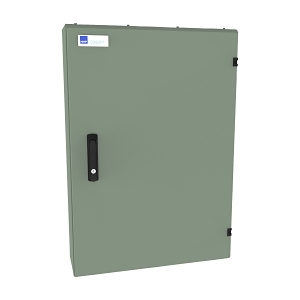

Product Name/Title: NHP Concept Plus Panelboard Isolation Chassis 864mm IP42 DIN-T 48 Way GB Chassis No Main Switch Grey
Brand: NHP
SKU: CPLG48G
Alternatively Known As: NHP Panelboard, Isolation Chassis, Electrical Distribution Board
Technical Specifications
- Rated Current: 250 A
- Number of Outgoing Ways: 48
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Insulation Voltage: 500 V
- Neutral Terminal Block: Yes
- Earthing Terminal Block: Yes
- Spare DIN Equipment Space Poles: 18
- Impact Strength: IK10
- Dimensions (H x L x W): 864mm x 200mm x 600mm
- Weight: 20 kg
Key Features
- 250 A rated current with 48 outgoing ways.
- IP42 protection rating suitable for indoor use.
- Steel housing with a thickness of 1.6 mm for durability.
- Surface mounted design with a door cover.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Retail spaces, offices, and industrial applications
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept Plus Panelboard Isolation Chassis is available now for immediate purchase, ideal for electrical distribution in residential and commercial settings.
