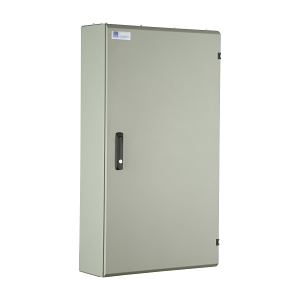

Product Name/Title: NHP Concept Premier Panelboard 400A 1080mm DIN-T 12 30 Way Chassis 400A Main Switch Grey
Brand: NHP
SKU: CPRH1230M400G
Alternatively Known As: NHP Panelboard, Electrical Distribution Board, 400A Panelboard
Technical Specifications
- Rated Current: 400 A
- Number of Outgoing Ways: 42
- Number of Poles (18mm pitch): 30
- Number of Poles (27mm pitch): 12
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Insulation Voltage: 500 V
- Number of Poles Main Switch: 3
- Neutral Terminal Block: Yes
- Neutral Bar Rated Current: 400 A
- Earthing Terminal Block: Yes
- Material Housing: Steel
- Material Thickness: 1.6 mm
- Degree of Protection: IP66
- Type of Cover: Door
- Material Thickness Cover: 1.6 mm
- With Lock: Yes
- Mounting Method: Surface mounted (plaster)
- Impact Strength: IK10
- Dimensions (H x L x W): 1080mm x 240mm x 600mm
- Weight: 25 kg
Key Features
- 400A main switch for high capacity electrical distribution.
- IP66 rated for protection against dust and water ingress.
- Surface mounted design for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Commercial: Industrial facilities, large buildings
- General: Electrical distribution in various settings
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
- Durable steel construction reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept Premier Panelboard 400A 1080mm DIN-T 12 30 Way Chassis is available now for immediate purchase. Ideal for commercial and industrial electrical distribution.
