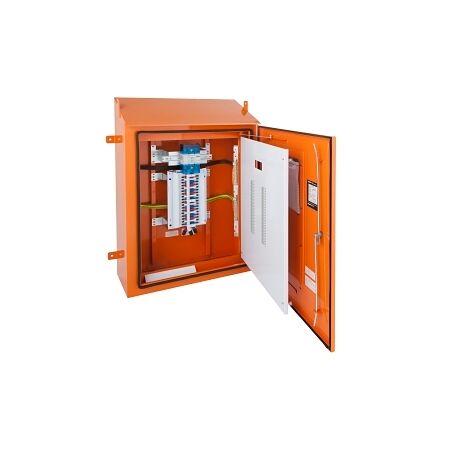

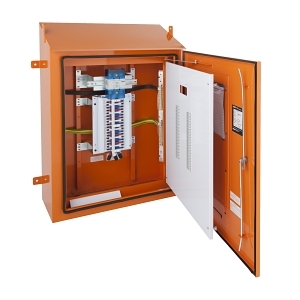

Product Name/Title: NHP Concept Tough Panelboard Size 2 1000mm IP66 DINT 24 Way Orange
Brand: NHP
SKU: CTD24O
Alternatively Known As: Tough Panelboard, Industrial Panelboard, Distribution Board
Technical Specifications
- Rated Current: 250 A
- Number of Outgoing Ways: 24
- Max Rated Operation Voltage: 415 V
- Rated Impulse Withstand Voltage: 6 kV
- Rated Insulation Voltage: 500 V
- Neutral Terminal Block: Yes
- Neutral Bar Rated Current: 165 A
- Earthing Terminal Block: Yes
- Spare DIN Equipment Space Poles: 18
- Type of Cover: Door
- With Lock: Yes
- Mounting Method: Surface mounted (plaster)
- Dimensions (H x L x W): 1000mm x 324mm x 800mm
- Weight: 25 kg
Key Features
- IP66 rated for dust and water protection.
- 24 outgoing ways for versatile electrical distribution.
- Steel housing with a thickness of 2 mm for durability.
- Impact strength rated IK10 for high resistance to mechanical impacts.
Professional Installation Requirements
- Professional installation by a qualified electrician is required for safety and compliance.
Applications
- Industrial: Factories, manufacturing plants
- Commercial: Retail spaces, office buildings
- General: Any location requiring robust electrical distribution
Standards & Compliance
- Complies with AS/NZS 61439 for low-voltage switchgear and controlgear assemblies.
Environmental Benefits
- Durable materials reduce the need for frequent replacements.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP Concept Tough Panelboard Size 2 1000mm IP66 DINT 24 Way Orange is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable electrical distribution.
