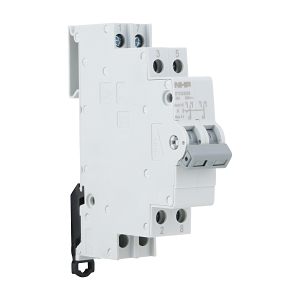

Product Name/Title: NHP DIN-T Changeover Switch 2Pole with Off 25A I 0 II
Brand: NHP
SKU: DTCS2523
Alternatively Known As: Changeover Switch, Off-load Switch, DIN Rail Switch
Technical Specifications
- Number of Poles: 2
- Nominal Voltage: 415 V
- Rated Current: 25 A
- Mounting Method: DIN rail
- Material Housing: Plastic
- Wire Conductor Size (Rigid Cable): 1-6 mm²
- Wire Conductor Size (Flex Cable): 0.75-2.5 mm²
- Degree of Protection (IP Front Side): IP21
- Complete Device in Housing: Yes
- With Zero Off Position: Yes
- Mechanical Life Service Cycles: 20000 cycles
- Number of Switch Positions: 3
- Operating Temperature: -25-55 °C
- Dimensions (H x L x W): 86mm x 68mm x 18mm
- Weight: 0.5 kg
Key Features
- 2-pole design with a rated current of 25A.
- DIN rail mounting for easy installation.
- IP21 rated for protection against solid objects greater than 12mm.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution systems
- Commercial: Electrical installations requiring changeover functionality
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
- Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP DIN-T Changeover Switch 2Pole with Off 25A I 0 II is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
