DTCS2522
BRAND: NHP

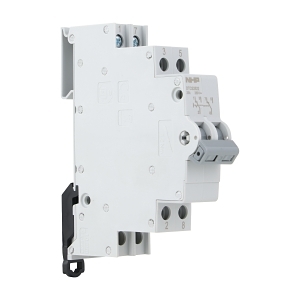

NHP DIN-T Changeover Switch 2Pole without Off 25A I II


$120.00 List price: $159.30
+

Product Name/Title: NHP DIN-T Changeover Switch 2Pole without Off 25A I II

Brand: NHP

SKU: DTCS2522

Alternatively Known As: Changeover Switch, Off-load Switch, DIN Rail Switch

Technical Specifications
  • Number of Poles: 2
  • Rated Current: 25 A
  • Nominal Voltage: 415 V
  • Mounting Method: DIN rail
  • Material Housing: Plastic
  • Wire Conductor Size (Rigid Cable): 1-6 mm²
  • Wire Conductor Size (Flex Cable): 0.75-2.5 mm²
  • Degree of Protection: IP20
  • Number of Switch Positions: 2
  • Operating Temperature: -25 to 55 °C
  • Dimensions (H x L x W): 86mm x 68mm x 18mm
  • Weight: 0.5 kg
Key Features
  • 2-pole design for reliable switching
  • Rated current of 25A and nominal voltage of 415V
  • DIN rail mounting for easy installation
  • Mechanical life of 20,000 cycles
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution systems
  • Commercial: Electrical installations requiring changeover functionality
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP DIN-T Changeover Switch 2Pole without Off 25A I II is available now for immediate purchase. Ideal for industrial and commercial electrical installations.

DTCS2522-AU-Changeover-Switch-Datasheet.pdf (DTCS2522-AU-Changeover-Switch-Datasheet.pdf, 226 Kb) [Download]
