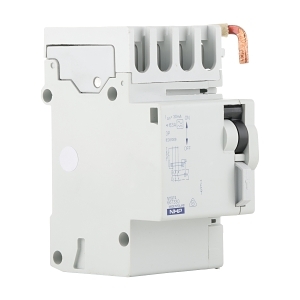

Product Name/Title: NHP DIN-T DINSAFE Residual Current Devices Add on module Clip On 3Pole 63A 30mA Type A
Brand: NHP
SKU: DSRCM63303PA
Alternatively Known As: RCD Module, Residual Current Device, Type A RCD
Technical Specifications
- Rated Current: 63 A
- Rated Voltage: 415 V
- Rated Leakage Current: 30 mA
- Tripping Time: 40 ms
- Rated Fault Current: 0-10000 A
- Frequency: 50/60 Hz
- Leakage Current Type: A
- Rated Insulation Voltage: 500 V
- Rated Impulse Withstand Voltage: 6 kV
- Number of Poles: 3
- Electrical Life at Un in Service Cycles: 10000 cycles
- Degree of Protection: IP20
- Mechanical Life Service Cycles: 20000 cycles
- Max Shock Duration: 5 ms
- Max Shock Acceleration: 40 g
- Max Vibration Duration: 30 min
- Max Vibration Acceleration: 5 m/s²
- Max Vibration Frequency Operational: 80 Hz
- Operating Temperature: -5-60 °C
- Dimensions (H x L x W): 86mm x 76mm x 54mm
- Weight: 0.34 kg
Key Features
- Type A RCD for protection against earth faults.
- Fast tripping time of 40 ms for enhanced safety.
- IP20 rated for indoor use.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Enhances electrical safety, reducing the risk of electrical fires and accidents.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP DIN-T DINSAFE Residual Current Device Add-on Module is available now for immediate purchase. Ideal for enhancing electrical safety in residential and commercial settings.
