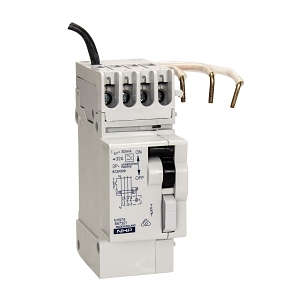

Product Name/Title: NHP DIN-T DINSAFE Residual Current Devices Add on module Clip On 3Pole and Neutral 32A 30mA Type A
Brand: NHP
SKU: DSRCM32303PNA
Alternatively Known As: RCD Module, Residual Current Device, Circuit Breaker Module
Technical Specifications
- Rated Current: 32 A
- Rated Voltage: 415 V
- Rated Leakage Current: 30 mA
- Tripping Time: 40 ms
- Rated Fault Current: 0-10000 A
- Frequency: 50/60 Hz
- Leakage Current Type: A
- Rated Insulation Voltage: 500 V
- Rated Impulse Withstand Voltage: 6 kV
- Number of Poles: 4
- Electrical Life: 10000 cycles
- Degree of Protection: IP20
- Mechanical Life: 20000 cycles
- Operating Temperature: -5 to 60 °C
- Dimensions (H x L x W): 86mm x 76mm x 36mm
- Weight: 0.34 kg
Key Features
- Add-on RCD Type A for enhanced safety
- Tripping time of 40 ms for quick response
- Rated leakage current of 30 mA
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and industrial applications
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed to enhance electrical safety and reduce the risk of electrical fires.
Warranty Information
Standard warranty applies.
Available Now
The NHP DIN-T DINSAFE Residual Current Device Add-on Module is available now for immediate purchase. Ideal for enhancing electrical safety in various applications.
