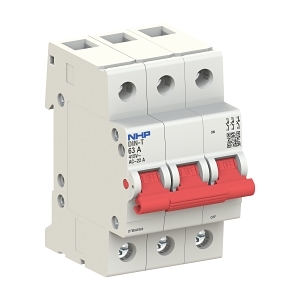

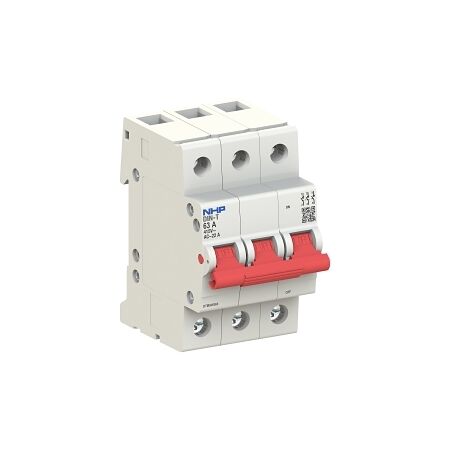

Product Name/Title: NHP DIN-T Main Switch 3 Pole 100A
Brand: NHP
SKU: DTMSW3100
Alternatively Known As: 3 Pole Main Switch, 100A DIN Rail Switch, NHP Main Switch
- Rated Current: 100 A
- Number of Poles: 3
- Rated Voltage: 415 V
- Frequency: 50-60 Hz
- Voltage Type: AC
- Rated Impulse Withstand Voltage: 4 kV
- Degree of Protection: IP40
- Connectable Conductor Cross Section: 1-50 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature: 35 °C
- Operating Ambient Temperature: -25-55 °C
- Dimensions (H x L x W): 85mm x 75.8mm x 52.5mm
- Weight: 0.27 kg
- 3 pole design for three-phase systems.
- Rated current of 100A for robust performance.
- IP40 protection rating for dust and moisture resistance.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Power distribution in commercial and industrial settings
- Residential: Main power control for homes
- Complies with AS/NZS 3000 for electrical installations.
- Efficient power management reduces energy waste.
1 year warranty against manufacturing defects.
The NHP DIN-T Main Switch 3 Pole 100A is available now for immediate purchase. Ideal for industrial and residential power distribution.
