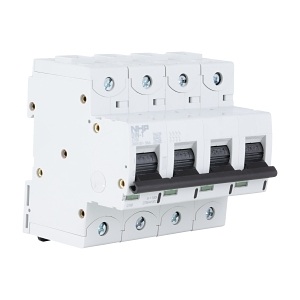

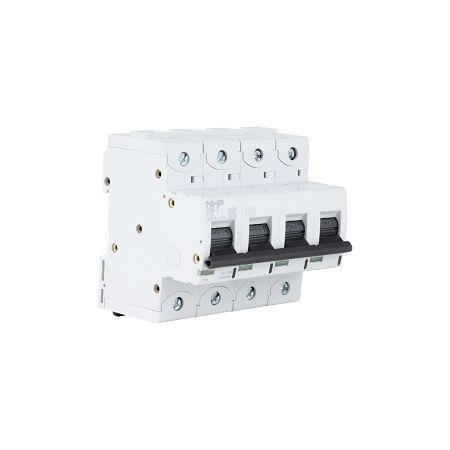

Product Name/Title: NHP DIN-T Miniature Circuit Breaker 10H 4Pole 80A C Curve
Brand: NHP
SKU: DTMH480C
Alternatively Known As: MCB, Miniature Circuit Breaker, Circuit Protection Device
Technical Specifications
- Rated Current: 80 A
- Number of Poles: 4
- Trip Curve: C
- Rated Voltage: 415 V
- Frequency: 50-60 Hz
- Voltage Type: AC/DC
- Rated Ultimate Short Circuit Breaking Capacity (ICU): 50 kA at 400 VAC
- Degree of Protection: IP40
- Connectable Conductor Cross Section: 1-70 mm² (solid), 1-50 mm² (multi-wired)
- Rated Insulation Voltage: 440 V
- Rated Impulse Withstand Voltage: 6 kV
- Ambient Temperature: -25 to 60 °C
- Dimensions (H x L x W): 94mm x 85mm x 108mm
- Weight: 0.84 kg
Key Features
- 4 poles with a C curve trip characteristic for reliable protection.
- Rated current of 80A suitable for various applications.
- IP40 rated for protection against solid objects.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Electrical distribution systems
- Commercial: Power protection in buildings
- General: Circuit protection in various electrical installations
Standards & Compliance
- Complies with AS/NZS 60947.2 for circuit breakers.
Environmental Benefits
- Efficient design reduces energy loss and enhances safety.
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The NHP DIN-T Miniature Circuit Breaker 10H 4Pole 80A C Curve is available now for immediate purchase. Ideal for industrial and commercial electrical systems.
