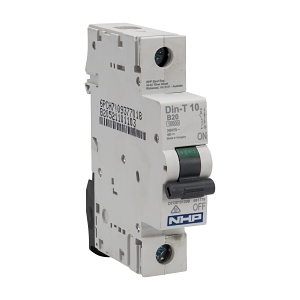

Product Name/Title: NHP DIN-T Miniature Circuit Breaker 10kA 1Pole 6A B Curve
Brand: NHP
SKU: DTCB10106B
Alternatively Known As: Miniature Circuit Breaker, MCB, 10kA Circuit Breaker, 1 Pole Circuit Breaker
Technical Specifications
- Rated Current: 6 A
- Number of Poles: 1
- Trip Curve: B
- Rated Voltage: 240 V
- Frequency: 50-60 Hz
- Voltage Type: AC/DC
- Rated Short Circuit Breaking Capacity: 10 kA
- Degree of Protection: IP40
- Connectable Conductor Cross Section: 1-35 mm² (solid), 1-25 mm² (multi-wired)
- Rated Insulation Voltage: 440 V
- Rated Impulse Withstand Voltage: 6 kV
- Pollution Degree: 3
- Rated Surrounding Temperature: 30 °C
- Ambient Temperature: -25 to 70 °C
- Dimensions (H x L x W): 86mm x 76mm x 18mm
- Weight: 0.12 kg
Key Features
- 10kA short circuit breaking capacity.
- B curve trip characteristic suitable for general applications.
- Compact design for space-saving installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Machinery and equipment protection
Standards & Compliance
- Complies with AS/NZS 60898 for circuit breakers.
Environmental Benefits
- Enhances electrical safety, reducing the risk of fire hazards.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP DIN-T Miniature Circuit Breaker 10kA 1Pole 6A B Curve is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
