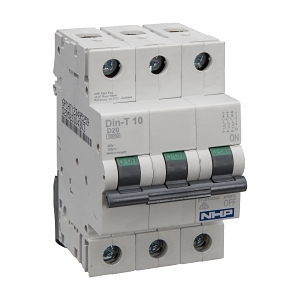

Product Name/Title: NHP DIN-T Miniature Circuit Breaker 10kA 3Pole 10A D Curve
Brand: NHP
SKU: DTCB10310D
Alternatively Known As: Miniature Circuit Breaker, MCB, 10A Circuit Breaker, 3 Pole MCB
Technical Specifications
- Rated Current: 10 A
- Number of Poles: 3
- Trip Curve: D
- Rated Voltage: 415 V
- Frequency: 50-60 Hz
- Voltage Type: AC/DC
- Rated Short Circuit Breaking Capacity: 10 kA at 230 VAC, 10 kA at 400 VAC
- Rated Insulation Voltage: 440 V
- Rated Impulse Withstand Voltage: 6 kV
- Degree of Protection: IP40
- Connectable Conductor Cross Section: 1-35 mm² (solid), 1-25 mm² (multi-wired)
- Pollution Degree: 3
- Rated Surrounding Temperature: 30 °C
- Operating Temperature Range: -25 to 70 °C
- Dimensions (H x L x W): 86mm x 76mm x 54mm
- Weight: 0.36 kg
Key Features
- 10kA short circuit breaking capacity
- 3 poles with D curve trip characteristic
- Rated for 10A current and 415V voltage
- IP40 protection degree
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices, retail spaces, and industrial applications
- General: Electrical distribution and protection in various settings
Standards & Compliance
- Complies with AS/NZS 60898 for circuit breakers.
Environmental Benefits
- Enhances electrical safety, reducing the risk of fire hazards.
- Durable design contributes to long-term reliability and reduced waste.
Warranty Information
Standard warranty as per manufacturer guidelines.
Available Now
The NHP DIN-T Miniature Circuit Breaker 10kA 3Pole 10A D Curve is available now for immediate purchase. Ideal for residential and commercial electrical protection.
