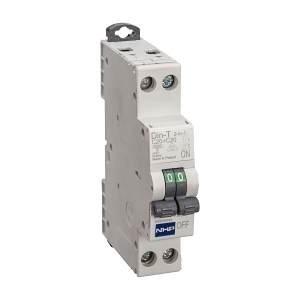

Product Name/Title: NHP DIN-T Miniature Circuit Breaker 2 IN 1 6kA 1Pole plus 1Pole 10A 18mm Width
Brand: NHP
SKU: DTCBD61110C
Alternatively Known As: Miniature Circuit Breaker, MCB, DIN Rail Circuit Breaker
Technical Specifications
- Rated Current: 10 A
- Number of Poles: 2
- Trip Curve: C
- Rated Voltage: 240 V
- Frequency: 50-60 Hz
- Voltage Type: AC/DC
- Rated Short Circuit Breaking Capacity: 6 kA
- Degree of Protection: IP40
- Connectable Conductor Cross Section: 1-16 mm² (solid), 1-10 mm² (multi-wired)
- Rated Insulation Voltage: 400 V
- Rated Impulse Withstand Voltage: 6 kV
- Pollution Degree: 3
- Rated Surrounding Temperature: 30 °C
- Ambient Temperature During Operating: -25-55 °C
- Dimensions (H x L x W): 86mm x 76mm x 18mm
- Weight: 0.16 kg
Key Features
- 6kA short circuit breaking capacity.
- Compact 18mm width design.
- C trip curve for general applications.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- General: Electrical distribution and protection in various applications
Standards & Compliance
- Complies with AS/NZS 60898 and AS/NZS 60947 for safety and performance standards.
Environmental Benefits
- Designed to enhance electrical safety and reduce fire hazards.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP DIN-T Miniature Circuit Breaker is available now for immediate purchase, ideal for residential and commercial electrical systems.
