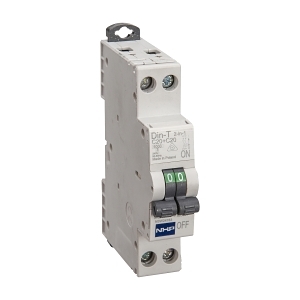

Product Name/Title: NHP DIN-T Miniature Circuit Breaker 2 IN 1 6kA 1Pole plus 1Pole 2A 18mm Width
Brand: NHP
SKU: DTCBD61102C
Alternatively Known As: Miniature Circuit Breaker, MCB, DIN Rail Circuit Breaker
Technical Specifications
- Rated Current: 2 A
- Number of Poles: 2
- Trip Curve: C
- Rated Voltage: 240 V
- Frequency: 50-60 Hz
- Voltage Type: AC/DC
- Service Voltage (Ub AC): 12 V
- Rated Short Circuit Breaking Capacity (ICN): 6 kA
- Max Rated Operation Voltage (UE): 250 V
- Rated Insulation Voltage (Ui): 400 V
- Rated Impulse Withstand Voltage (Uimp): 6 kV
- Degree of Protection: IP40
- Connectable Conductor Cross Section (Solid Core): 1-16 mm²
- Connectable Conductor Cross Section (Multi-Wired): 1-10 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature Without Derating: 30 °C
- Ambient Temperature During Operating: -25-55 °C
- Dimensions (H x L x W): 86mm x 76mm x 18mm
- Weight: 0.16 kg
Key Features
- 6kA short circuit breaking capacity.
- Compact 18mm width design.
- Dual pole configuration for versatile applications.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes, apartments, and small buildings
- Commercial: Offices and retail spaces
- Industrial: Light industrial applications requiring circuit protection
Standards & Compliance
- Complies with AS/NZS 60898 for circuit breakers.
Environmental Benefits
- Enhances electrical safety, reducing the risk of fire hazards.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP DIN-T Miniature Circuit Breaker is available now for immediate purchase, ideal for residential and commercial electrical systems.
