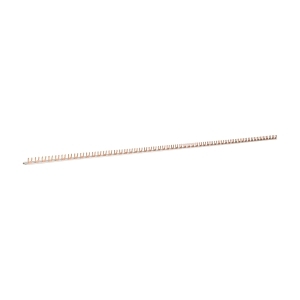

Product Name/Title: NHP DIN-T Miniature Circuit Breaker Bus Comb 57 Way 1Pole Fork Type 110A End Feed 130A Centre Feed
Brand: NHP
SKU: ICL561F
Alternatively Known As: Miniature Circuit Breaker Busbar, DIN Rail Bus Comb, Fork Type Busbar
Technical Specifications
- Rated current in busbar comb centre feed: 130 A
- Rated current in busbar comb end feed: 110 A
- Type of electric connection: Fork
- Number of phases: 1
- Number of poles: 57
- Rated permanent current (Iu): 85 A
- Conditioned rated short circuit current (Iq): 25 kA
- Suitable for number of devices: 57
- Insulated: Yes
- Suitable for devices with N conductor: No
- Suitable for devices with auxiliary switch: No
- Module width: 18 mm
- Cross section: 16 mm²
- Dimensions (H x L x W): 57mm x 130mm x 18mm
- Weight: 1.5 kg
Key Features
- Busbar Comb Fork Type 1 Pole with 57 ways.
- Rated current of 110A for end feed and 130A for centre feed.
- Insulated design for enhanced safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in commercial and industrial settings
- Residential: Electrical installations requiring circuit protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Efficient design reduces energy loss and enhances system reliability.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP DIN-T Miniature Circuit Breaker Bus Comb is available now for immediate purchase, ideal for electrical installations requiring reliable circuit protection.
