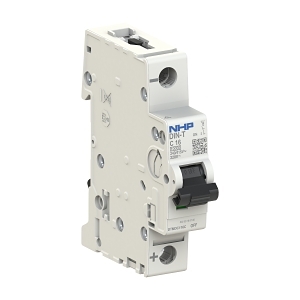

Product Name/Title: NHP DIN-T Miniature Circuit Breaker MCB DC 10kA 1 Pole 2A C Curve
Brand: NHP
SKU: DTMDC102C
Alternatively Known As: Miniature Circuit Breaker, MCB, DC Circuit Breaker, 10kA MCB
Technical Specifications
- Rated Current: 2 A
- Number of Poles: 1
- Trip Curve: C
- Rated Voltage: 220 V
- Frequency: 50-60 Hz
- Voltage Type: DC
- Rated Short Circuit Breaking Capacity: 10 kA
- Degree of Protection: IP40
- Connectable Conductor Cross Section: 0.75-35 mm² (solid core), 0.75-25 mm² (multi-wired)
- Rated Insulation Voltage: 440 V
- Rated Impulse Withstand Voltage: 4 kV
- Ambient Temperature: -25 to 70 °C
- Dimensions (H x L x W): 85mm x 75.8mm x 17.5mm
- Weight: 0.2 kg
Key Features
- 1 Pole configuration with C Curve trip characteristic.
- Rated short circuit breaking capacity of 10 kA.
- IP40 protection degree for reliable performance.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Residential: Homes and small electrical installations
- Commercial: Small businesses and office buildings
- Industrial: Equipment protection in various applications
Standards & Compliance
- Complies with AS/NZS 60898 and AS/NZS 60947 for safety and performance standards.
Environmental Benefits
- Enhances electrical safety, reducing the risk of fire hazards.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP DIN-T Miniature Circuit Breaker MCB DC 10kA 1 Pole 2A C Curve is available now for immediate purchase. Ideal for residential, commercial, and industrial applications.
