DTMDC220C
BRAND: NHP

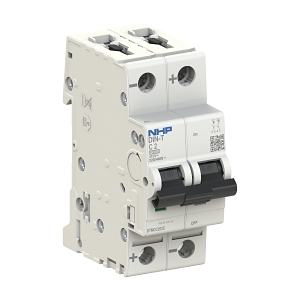

NHP DIN-T Miniature Circuit Breaker MCB DC 10kA 2 Pole 20A C Curve


$425.10 List price: $564.50
+

Product Name/Title: NHP DIN-T Miniature Circuit Breaker MCB DC 10kA 2 Pole 20A C Curve

Brand: NHP

SKU: DTMDC220C

Alternatively Known As: MCB, Miniature Circuit Breaker, DC Circuit Breaker

Technical Specifications
  • Rated Current: 20 A
  • Number of Poles: 2
  • Trip Curve: C
  • Rated Voltage: 440 V
  • Frequency: 50-60 Hz
  • Voltage Type: DC
  • Rated Short Circuit Breaking Capacity: 10 kA
  • Degree of Protection: IP40
  • Connectable Conductor Cross Section: 0.75-35 mm² (solid core)
  • Dimensions (H x L x W): 85mm x 75.8mm x 35mm
  • Weight: 0.2 kg
Key Features
  • Rated current of 20A with a C curve trip characteristic.
  • 10kA short circuit breaking capacity.
  • Suitable for DC applications up to 440V.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Machinery and equipment protection
  • Commercial: Electrical distribution systems
  • Residential: Home electrical systems
Standards & Compliance
  • Complies with AS/NZS 60898 and AS/NZS 60947 for safety and performance standards.
Environmental Benefits
  • Enhances electrical safety, reducing the risk of fire hazards.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The NHP DIN-T Miniature Circuit Breaker MCB DC 10kA 2 Pole 20A C Curve is available now for immediate purchase. Ideal for industrial, commercial, and residential electrical systems.

DTMDC220C-AU-MCB-DC-10kA-2P-C-Curve-Datasheet.pdf (DTMDC220C-AU-MCB-DC-10kA-2P-C-Curve-Datasheet.pdf, 211 Kb) [Download]
